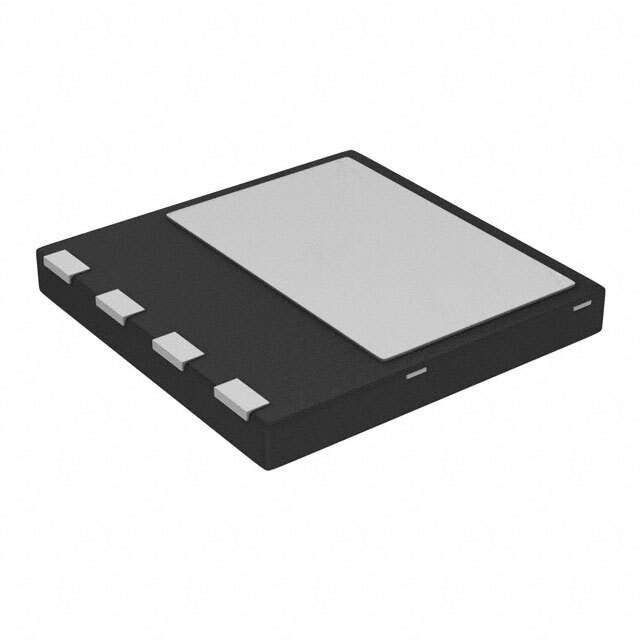

IDL12G65C5XUMA2 Real Image
Same model may have multiple batches, images only for reference.

IDL12G65C5XUMA2

Part No IDL12G65C5XUMA2
Manufacturer Infineon Technologies
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 650V 12A VSON-4  /  Diode Silicon Carbide Schottky 650 V 12A (DC) Surface Mount PG-VSON-4
Datasheet
IDL12G65C5XUMA2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Infineon Technologies
Series CoolSiC™+
Package Tape & Reel
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) 650 V
Current - Average Rectified (Io) 12A (DC)
Voltage - Forward (Vf) (Max) @ If 1.7 V @ 12 A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0 ns
Current - Reverse Leakage @ Vr 190 µA @ 650 V
Capacitance @ Vr, F 360pF @ 1V, 1MHz
Mounting SMD (SMT)
Package / Case 4-PowerTSFN
Supplier Device Package PG-VSON-4
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number IDL12G65
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 2156-IDL12G65C5XUMA2,IDL12G65C5XUMA2-ND,448-IDL12G65C5XUMA2CT,SP001632964,448-IDL12G65C5XUMA2DKR,448-IDL12G65C5XUMA2TR,INFINFIDL12G65C5XUMA2
Standard Package 3,000
Win Source Part Number 1064319-IDL12G65C5XUMA2
Ultra Librarian 3D Model Ultra Librarian IDL12G65C5XUMA2 CAD Model

Description

The IDL12G65C5XUMA2 electronic component manufactured by Infineon Technologies is a high-quality product that is commonly used in various electronic devices.

  • Type: Silicon Carbide Schottky Diode
  • Voltage DC Reverse: 650V
  • Reverse Recovery Time: 0ns
  • Forward Voltage: 1.7V @ 12A
  • Supply and Demand Status: Balanced
