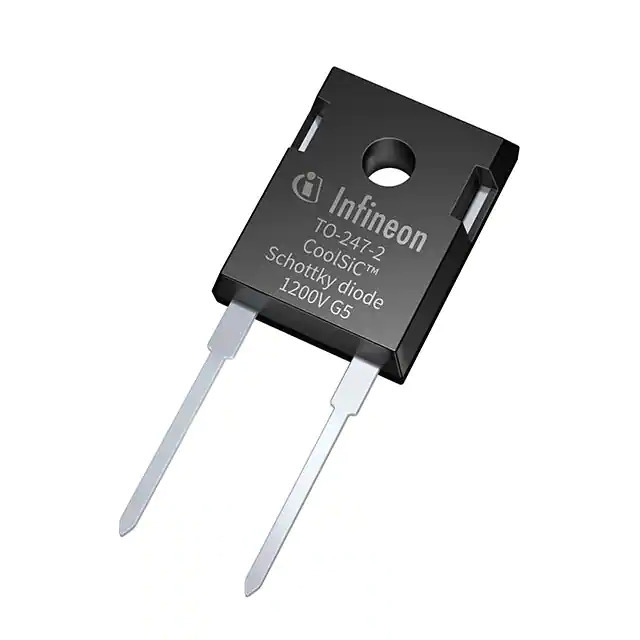

Same model may have multiple batches, images only for reference.

IDWD40G120C5XKSA1

Name: IDWD40G120C5XKSA1
Brand: Infineon Technologies
SKU: 1356189
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	IDWD40G120C5XKSA1
Manufacturer	Infineon Technologies
Catalog	Diodes, Rectifiers - Single
Description	DIODE SIL CARB 1.2KV 110A TO247 / Diode 1200 V 110A Through Hole PG-TO247-2
Datasheet	IDWD40G120C5XKSA1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr	Infineon Technologies
Series	CoolSiC™+
Package	Tube
Product Status	Active
Technology	SiC (Silicon Carbide) Schottky
Voltage - DC Reverse (Vr) (Max)	1200 V
Current - Average Rectified (Io)	110A
Voltage - Forward (Vf) (Max) @ If	1.65 V @ 40 A
Speed	No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr)	0 ns
Current - Reverse Leakage @ Vr	332 µA @ 1200 V
Capacitance @ Vr, F	2592pF @ 1V, 1MHz
Mounting Type	Through Hole
Package / Case	TO-247-2
Supplier Device Package	PG-TO247-2
Operating Temperature - Junction	-55°C ~ 175°C
Base Product Number	IDWD40
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	1356189-IDWD40G120C5XKSA1
Ultra Librarian 3D Model	Ultra Librarian IDWD40G120C5XKSA1 CAD Model

Alternative Products

Description

The IDWD40G120C5XKSA1 is a silicon carbide (SiC) Schottky diode manufactured by Infineon Technologies.

Series: CoolSiC+
Package: TO-247-2
Maximum Reverse Voltage (Vr): 1200V
Average Rectified Current (Io): 110A
Forward Voltage (Vf): 1.65V @ 40A
Recovery Time: No recovery time for currents greater than 500mA
Reverse Recovery Time (trr): 0 ns
Reverse Leakage Current: 332μA @ 1200V
Capacitance: 2592pF @ 1V and 1MHz
REACH: Unaffected
ECCN: EAR99
