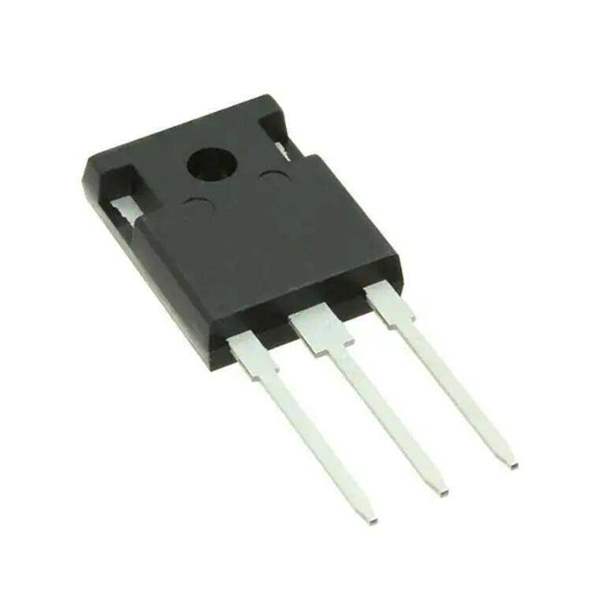

IGW40N120H3FKSA1Infineon Technologies
Same model may have multiple batches, images only for reference.

IGW40N120H3FKSA1

Part No IGW40N120H3FKSA1
Manufacturer Infineon Technologies
Catalog Transistors (BJT) - Single
Description IGBT 1200V 80A 483W TO247-3
Datasheet
IGW40N120H3FKSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1196616-IGW40N120H3FKSA1
Win Source Part Number Cross
Manufacturer Infineon Technologies
Category Discrete Semiconductor Products Transistors IGBTs Single IGBTs
Series TrenchStop®
Package Tube
Product Status Not For New Designs
IGBT Type Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) 1200 V
Current - Collector (Ic) (Max) 80 A
Current - Collector Pulsed (Icm) 160 A
Ultra Librarian 3D Model Ultra Librarian IGW40N120H3FKSA1 CAD Model

Description

The Infineon Technologies 1196616 is a single IGBT transistor from the TrenchStop® series by Infineon Technologies.

  • Series: TrenchStop®
  • Application: Discrete semiconductor products
  • Collector-Emitter Breakdown Voltage: 1200V
  • Collector Current (Ic): 80A
  • Pulsed Current Rating: 160A
  • Design: Trench Field Stop
  • Package: Tube
  • Recommendation: Not recommended for new designs
