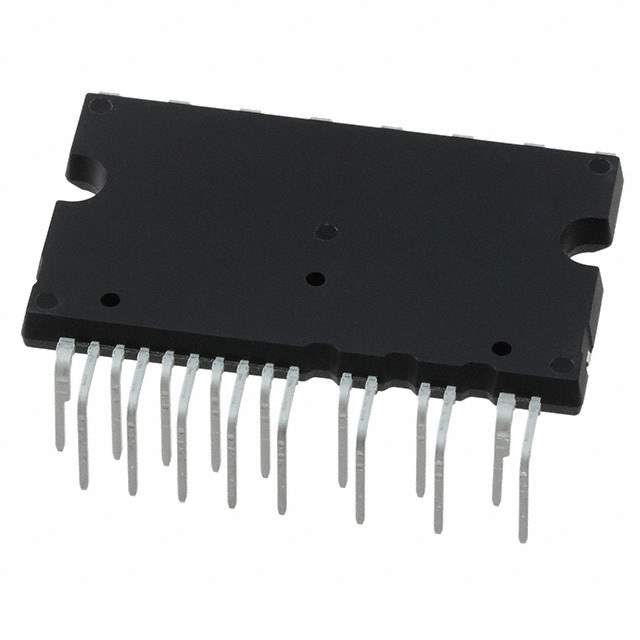

The IKCM15F60GA is an intelligent power module (IPM) from Infineon Technologies designed for motor drive applications. This module integrates multiple IGBTs and driver ICs into a single package, simplifying the design and assembly of motor control systems.

Applications

• Washing Machines
• Air Conditioners
• Refrigerators
• Industrial Motor Drives
• Fan Motors

Features

• Integrated Gate Drivers: Simplifies design and reduces component count.
• Short-Circuit Protection: Protects the module and the driven motor from damage.
• Under-Voltage Lockout (UVLO): Prevents operation with insufficient supply voltage.
• Over-Temperature Protection: Shuts down the module to prevent thermal damage.
• Bootstrap Diodes: Integrated bootstrap diodes simplify high-side gate driving.
• Low Thermal Resistance: Enables efficient heat dissipation.

Benefits

• Simplified Design: Reduces design effort and time-to-market.
• Increased Reliability: Integrated protection features enhance system robustness.
• Compact Size: Reduces the overall size of the motor drive system.
• Improved Efficiency: Optimized gate drivers minimize switching losses.
• Lower System Cost: Reduces component count and assembly costs.

Additional Details

The IKCM15F60GA integrates six IGBTs in a three-phase inverter configuration along with the necessary gate drivers and protection circuitry. The integrated gate drivers are optimized for low switching losses and efficient operation. The short-circuit protection feature quickly shuts down the IGBTs in the event of a short circuit, preventing damage to the module and the connected motor. The under-voltage lockout (UVLO) feature ensures that the module only operates when the supply voltage is sufficient, preventing erratic behavior and potential damage. The over-temperature protection feature monitors the module's temperature and shuts it down if it exceeds a safe operating limit. The integrated bootstrap diodes simplify the design of the high-side gate drivers, reducing the need for external components. The module's low thermal resistance allows for efficient heat dissipation, enabling operation at higher power levels. This IPM is typically packaged in a compact package, facilitating easy mounting and integration into motor drive systems.
