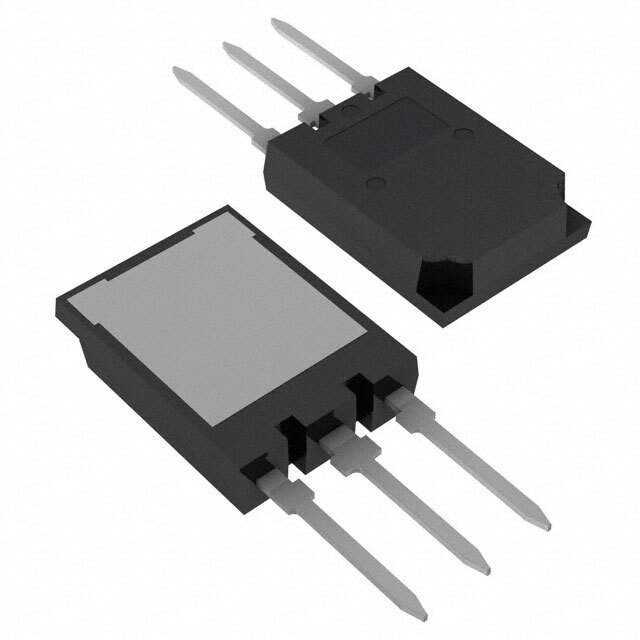

IKQ50N120CT2XKSA1 Infineon Technologies
Same model may have multiple batches, images only for reference.

IKQ50N120CT2XKSA1

Part No IKQ50N120CT2XKSA1
Manufacturer Infineon Technologies
Catalog IGBTs - Single
Description IGBT 1200V 100A TO247-3-46
Datasheet
IKQ50N120CT2XKSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1203184-IKQ50N120CT2XKSA1
Manufacturer Infineon Technologies
Category Discrete Semiconductor Products -Transistors- IGBTs Single IGBTs
Series TrenchStop™
Package Tube
Product Status Not For New Designs
Switching Energy 3.8mJ (on), 3.3mJ (off)
Input Type Standard
Operating Temperature -40°C ~ 175°C (TJ)
Package / Case TO-247-3
Supplier Device Package PG-TO247-3-46
Ultra Librarian 3D Model Ultra Librarian IKQ50N120CT2XKSA1 CAD Model

Description

Features:TRENCHSTOPMI 2 technology ofers:●Very low Vcpat> 1.75V at nominal current<br />●10μsec short dircult withstand time at T-=175*C<br />●Easy prlleling capability due to positive temperature coefficlent in Voqpan<br />●Low EMI<br />●Very soft, fast recovery full current anti-paral lel diode<br />●Maximum junction temperature 175^C<br />●Pb-iree lead plating; RoHS compliant
