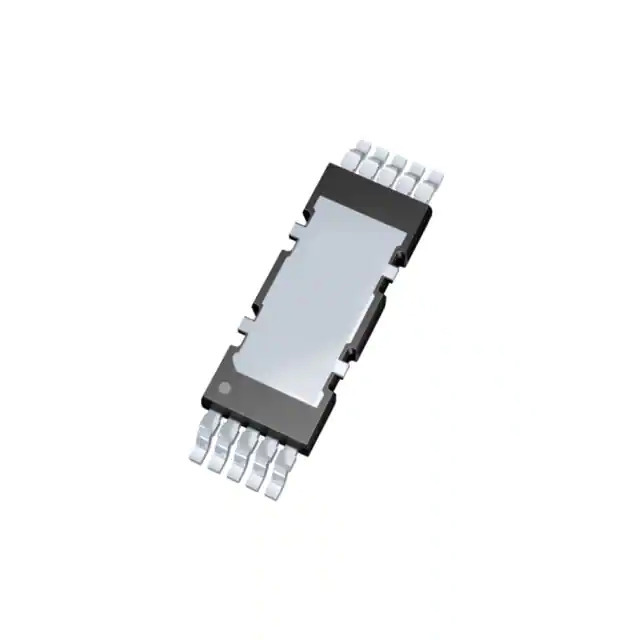

IPDD60R125CFD7XTMA1 Infineon Technologies
Same model may have multiple batches, images only for reference.

IPDD60R125CFD7XTMA1

Part No IPDD60R125CFD7XTMA1
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 600V 27A HDSOP-10 / N-Channel 600 V 27A (Tc) 176W (Tc) Surface Mount PG-HDSOP-10-1
Datasheet
IPDD60R125CFD7XTMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr Infineon Technologies
Series CoolMOS™ CFD7
Package Tape & Reel
Product Status Active
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 600 V
Current - Continuous Drain (Id) @ 25°C 27A (Tc)
Rds On (Max) @ Id, Vgs 125mOhm @ 6.8A, 10V
Vgs(th) (Max) @ Id 4.5V @ 340µA
Gate Charge (Qg) (Max) @ Vgs 31 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 1329 pF @ 400 V
FET Feature -
Power Dissipation (Max) 176W (Tc)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Supplier Device Package PG-HDSOP-10-1
Package / Case 10-PowerSOP Module
Base Product Number IPDD60
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1357349-IPDD60R125CFD7XTMA1
Ultra Librarian 3D Model Ultra Librarian IPDD60R125CFD7XTMA1 CAD Model

Description

The IPDD60R125CFD7XTMA1 is an N-channel MOSFET transistor from Infineon Technologies.

  • Series: CoolMOS CFD7
  • Drain-to-Source Voltage: 600V
  • Continuous Drain Current: 27A @ 25°C
  • On-Resistance: 125mOhm @ 6.8A and 10V
  • Gate Threshold Voltage: 4.5V @ 340µA
  • Gate Charge: 31nC @ 10V
  • Package: 10-PowerSOP module
  • Mounting Type: Surface Mount
