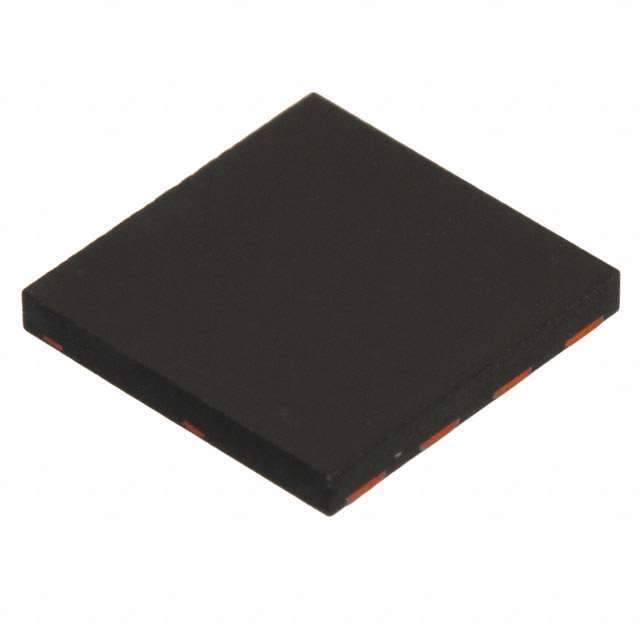

IPL60R299CPAUMA1

Part No IPL60R299CPAUMA1
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 650V 11.1A 4VSON / N-Channel 650 V 11.1A (Tc) 96W (Tc) Surface Mount PG-VSON-4
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Manufacturer Infineon Technologies
Packaging Reel - TR
Product Status Not For New Designs
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 650 V
Current - Continuous Drain (Id) @ 25°C 11.1A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 299mOhm @ 6.6A, 10V
Vgs(th) (Max) @ Id 3.5V @ 440µA
Gate Charge (Qg) (Max) @ Vgs 22 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 1100 pF @ 100 V
Power Dissipation (Max) 96W (Tc)
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Surface Mount
Supplier Device Package PG-VSON-4
Case / Package 4-PowerTSFN
Base Product Number IPL60R299
RoHS Status ROHS3 Compliant
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Part Number IPL60R299CPAUMA1CT,IPL60R299CP,IPL60R299CP-ND,2156-IPL60R299CPAUMA1,IPL60R299CPAUMA1DKR,SP000841896,IPL60R299CPCT,IPL60R299CPDKR,IPL60R299CPTR-ND,IPL60R299CPCT-ND,IPL60R299CPAUMA1TR,IPL60R299CPDKR-ND,INFINFIPL60R299CPAUMA1
Standard Package 3,000
Win Source Part Number 1324442-IPL60R299CPAUMA1

Description

The Infineon Technologies IPL60R299CPAUMA1 is an N-channel MOSFET suitable for use in single transistor applications. It comes in a reel package and has a standard package of 3,000. The mounting type is surface mount, and the technology is MOSFET (Metal Oxide). The drain to source voltage (Vdss) is 650 V, and the current - continuous drain (Id) @ 25°C is 11.1A (Tc). The Rds On (Max) @ Id, Vgs is 299mOhm @ 6.6A, 10V, and the Vgs(th) (Max) @ Id is 3.5V @ 440μA. The power dissipation (Max) is 96W (Tc), and the supplier device package is PG-VSON-4. The gate charge (Qg) (Max) @ Vgs is 22 nC @ 10 V, and the input capacitance (Ciss) (Max) @ Vds is 1100 pF @ 100 V. The Vgs (Max) is ±20V, and the temperature range for operating is -40°C ~ 150°C (TJ). The case/package is 4-PowerTSFN, and the ECCN is EAR99. The Mfr is Infineon Technologies.
