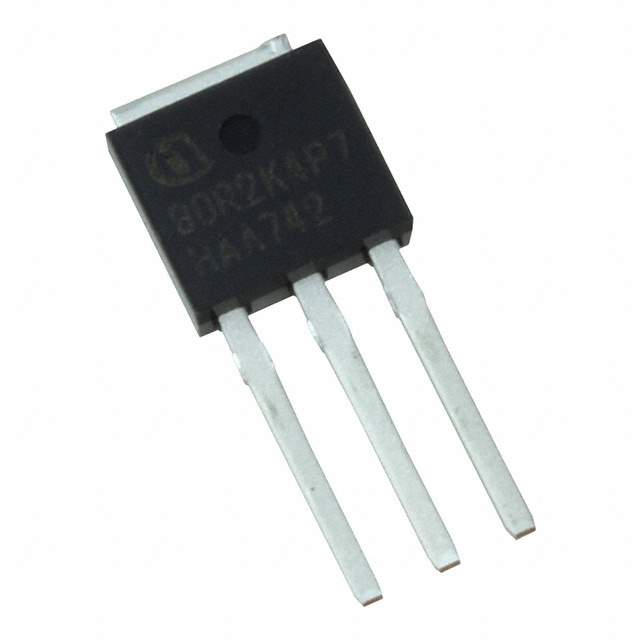

IPS80R900P7AKMA1 Real Image
Same model may have multiple batches, images only for reference.

IPS80R900P7AKMA1

Part No IPS80R900P7AKMA1
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 800V 6A TO251-3  /  N-Channel 800 V 6A (Tc) 45W (Tc) Through Hole PG-TO251-3
Datasheet
IPS80R900P7AKMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr Infineon Technologies
Series CoolMOS™ P7
Package Tube
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 800 V
Current - Continuous Drain (Id) @ 25°C 6A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 900mOhm @ 2.2A, 10V
Vgs(th) (Max) @ Id 3.5V @ 110µA
Gate Charge (Qg) (Max) @ Vgs 15 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 350 pF @ 500 V
Power Dissipation (Max) 45W (Tc)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Supplier Device Package PG-TO251-3
Package / Case TO-251-3 Short Leads, IPak, TO-251AA
Base Product Number IPS80R900
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names SP001633526,2156-IPS80R900P7AKMA1,ROCINFIPS80R900P7AKMA1
Standard Package 1,500
Win Source Part Number 1065255-IPS80R900P7AKMA1
Ultra Librarian 3D Model Ultra Librarian IPS80R900P7AKMA1 CAD Model

Description

The Infineon Technologies IPS80R900P7AKMA1 is an N-channel MOSFET transistor with a drain to source voltage of 800 V and a continuous drain current of 6A (Tc).

  • Drain to Source Voltage: 800 V
  • Continuous Drain Current: 6A (Tc)
  • Maximum Power Dissipation: 45W (Tc)
  • Gate Charge: 15 nC @ 10 V
  • Input Capacitance: 350 pF @ 500 V
  • Vgs(th): 3.5V @ 110µA
  • CoolMOS™ P7: Compliant
  • RoHS: Compliant
  • Package: TO-251-3 Short Leads, IPak, TO-251AA
  • Mounting Technology: Through-hole
