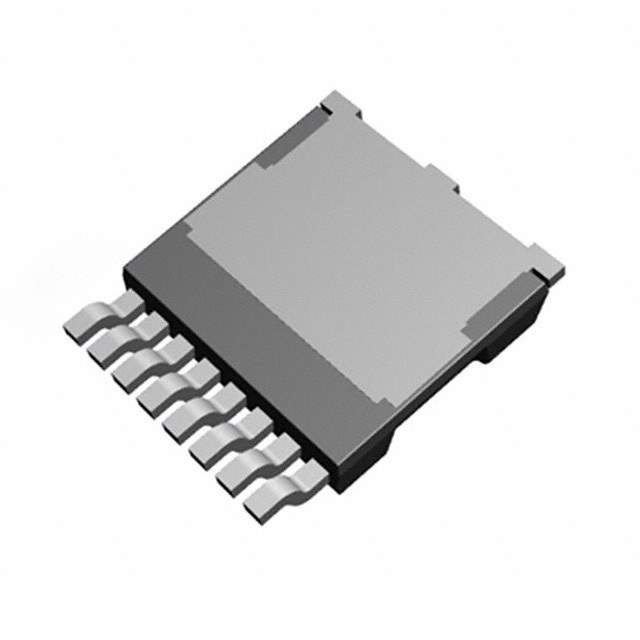

IPTG111N20NM3FDATMA1 Real Image
Same model may have multiple batches, images only for reference.

IPTG111N20NM3FDATMA1

Part No IPTG111N20NM3FDATMA1
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Datasheet
IPTG111N20NM3FDATMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr Infineon Technologies
Series OptiMOS™ 3
Package Tape & Reel
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 200 V
Current - Continuous Drain (Id) @ 25°C 10.8A (Ta), 108A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 11.1mOhm @ 96A, 10V
Vgs(th) (Max) @ Id 4V @ 267µA
Gate Charge (Qg) (Max) @ Vgs 81 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 7000 pF @ 100 V
Power Dissipation (Max) 3.8W (Ta), 375W (Tc)
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting SMD (SMT)
Supplier Device Package PG-HSOG-8-1
Package / Case 8-PowerSMD, Gull Wing
Base Product Number IPTG111N
Other Names SP005431194,448-IPTG111N20NM3FDATMA1DKR,448-IPTG111N20NM3FDATMA1CT,448-IPTG111N20NM3FDATMA1TR
Standard Package 1,800
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1278308-IPTG111N20NM3FDATMA1
Ultra Librarian 3D Model Ultra Librarian IPTG111N20NM3FDATMA1 CAD Model

Description

The IPTG111N20NM3FDATMA1 is an N-Channel MOSFET transistor from Infineon Technologies.

  • Series: OptiMOS™ 3
  • Drain to Source Voltage: 200 V
  • Continuous Drain Current: 10.8A @ 25°C and 108A @ 100°C
  • Rds On (Max): 11.1mOhm @ 96A and 10V
  • Gate Charge (Qg) (Max) @ Vgs: 81 nC @ 10 V
  • Input Capacitance (Ciss) (Max) @ Vds: 7000 pF @ 100 V
  • Power Dissipation (Max): 3.8W @ 25°C and 375W @ 100°C
  • Package: 8-PowerSMD, Gull Wing
  • Supplier Device Package: PG-HSOG-8-1
  • Mounting: SMD (SMT)
  • Temperature Range: -55°C to 175°C (TJ)
