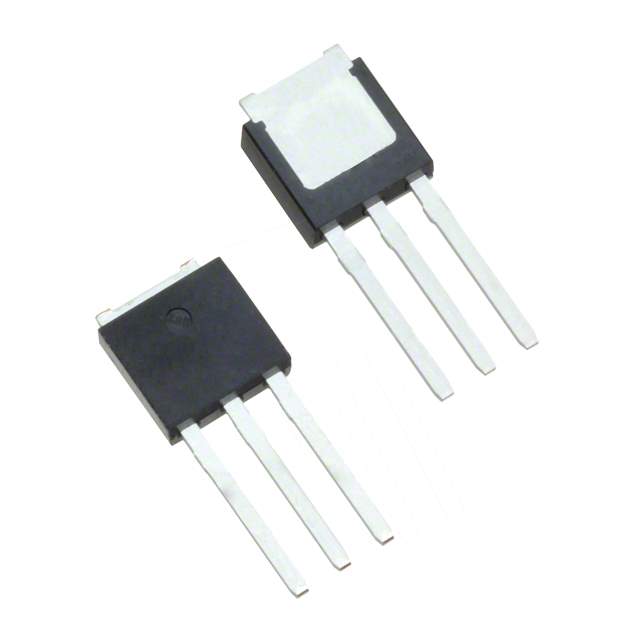

IPU80R4K5P7AKMA1

Part No IPU80R4K5P7AKMA1
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 800V 1.5A TO251-3 / N-Channel 800 V 1.5A (Tc) 13W (Tc) Through Hole PG-TO251-3-21
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Manufacturer Infineon Technologies
Packaging Tube
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 800 V
Current - Continuous Drain (Id) @ 25°C 1.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 4.5Ohm @ 400mA, 10V
Vgs(th) (Max) @ Id 3.5V @ 200µA
Gate Charge (Qg) (Max) @ Vgs 4 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 250 pF @ 500 V
FET Feature Super Junction
Power Dissipation (Max) 13W (Tc)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Through Hole
Supplier Device Package PG-TO251-3-21
Case / Package TO-251-3 Short Leads, IPak, TO-251AA
Base Product Number IPU80R4
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Part Number IFEINFIPU80R4K5P7AKMA1,2156-IPU80R4K5P7AKMA1,SP001422748
Standard Package 75
Win Source Part Number 1324457-IPU80R4K5P7AKMA1

Description

The Infineon Technologies IPU80R4K5P7AKMA1 is an N-channel super junction MOSFET that has a drain to source voltage of 800V and a current continuous drain (Id) @ 25°C of 1.5A (Tc). It has an Rds On (Max) @ Id, Vgs of 4.5Ohm @ 400mA, 10V and a Vgs(th) (Max) @ Id of 3.5V @ 200μA. This product is packaged in a PG-TO251-3-21 case and has a gate charge (Qg) (Max) @ Vgs of 4 nC @ 10 V. It has an input capacitance (Ciss) (Max) @ Vds of 250 pF @ 500 V and a maximum Vgs of ±20V. The supply and demand status is balanced. It is categorized under discrete semiconductor products and is ROHS3 compliant.
