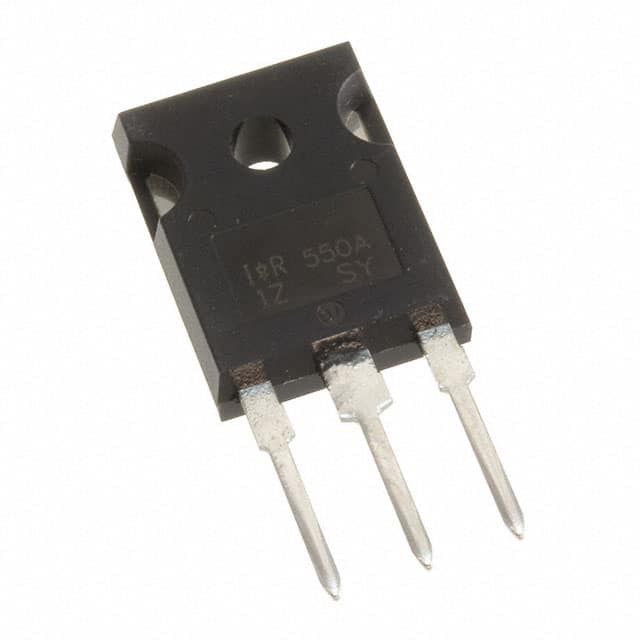

Same model may have multiple batches, images only for reference.
IPW60R190P6FKSA1 Infineon Technologies
Same model may have multiple batches, images only for reference.

IPW60R190P6FKSA1

Part No IPW60R190P6FKSA1
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 600V 20.2A TO247-3  /  N-Channel 600 V 20.2A (Tc) 151W (Tc) Through Hole PG-TO247-3
Datasheet
IPW60R190P6FKSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr Infineon Technologies
Series CoolMOS™ P6
Package Tube
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 600 V
Current - Continuous Drain (Id) @ 25°C 20.2A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 190mOhm @ 7.6A, 10V
Vgs(th) (Max) @ Id 4.5V @ 630µ
Gate Charge (Qg) (Max) @ Vgs 11 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 1750 pF @ 100 V
Power Dissipation (Max) 151W (Tc)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Supplier Device Package PG-TO247-3
Package / Case TO-247-3
Base Product Number IPW60R190
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names IPW60R190P6,INFINFIPW60R190P6FKSA1,IPW60R190P6-ND,SP001017090,2156-IPW60R190P6FKSA1
Standard Package 30
Win Source Part Number 1007921-IPW60R190P6FKSA1
Ultra Librarian 3D Model Ultra Librarian IPW60R190P6FKSA1 CAD Model

Description

The Infineon Technologies IPW60R190P6FKSA1 is an N-channel MOSFET transistor.

  • Drain to Source Voltage (Vdss): 600V
  • Continuous Drain Current (Id): 20.2A @ 25°C
  • Maximum On-Resistance (Rds On): 190mOhm @ 7.6A, 10V
  • Series: CoolMOS™ P6
  • Package: TO-247-3
  • Gate Charge (Qg): 11nC @ 10V
  • Input Capacitance (Ciss): 1750pF @ 100V
  • Maximum Threshold Voltage (Vgs(th)): 4.5V @ 630μA
  • Power Dissipation (Max): 151W (Tc)
