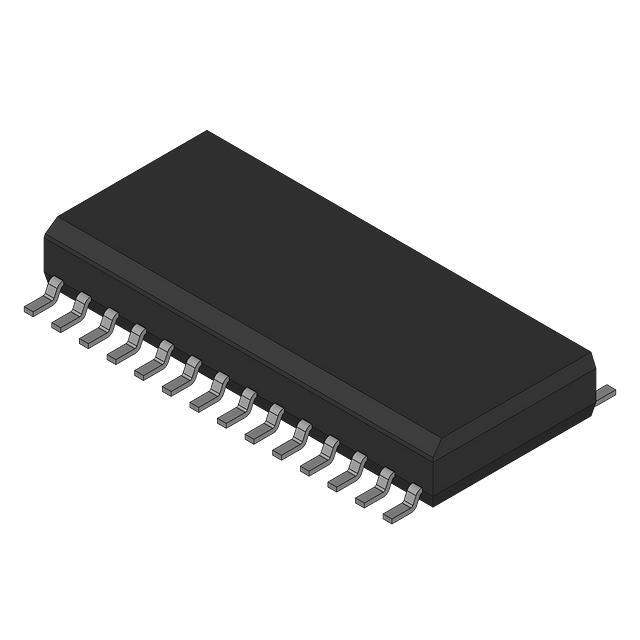

IR2235SPBF Real Image
Same model may have multiple batches, images only for reference.

IR2235SPBF

Part No IR2235SPBF
Manufacturer Infineon Technologies
Catalog PMIC - Gate Drivers
Description IC DRIVER 3-PHASE BRIDGE 28-SOIC
Datasheet
IR2235SPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Infineon Technologies
Packaging Tube/Rail
Status Active
Driven Configuration Half-Bridge
Channel Type 3-Phase
Number of Drivers 6
Gate Type IGBT, N-Channel MOSFET
Supply Voltage - Operating 10 V to 20 V
Logic Voltage - VIL, VIH 0.8V, 2V
Current - Peak Output (Source, Sink) 250mA, 500mA
Input Type Inverting
High Side Voltage - Max (Bootstrap) 1200V
Rise and Fall Time 90ns, 40ns
Temperature Range - Operating 125°C (TJ)
Mounting SMD (SMT)
Case / Package 28-SOIC
Win Source Part Number 109721-IR2235SPBF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian IR2235SPBF CAD Model

Description

The Infineon Technologies IR2235SPBF is a 3-phase, inverting input type half-bridge driver IC.

  • Drivers: 6
  • Gate Types: IGBT and N-Channel MOSFET
  • Logic Voltage (VIL, VIH): 0.8V, 2V
  • High Side Voltage - Max (Bootstrap): 1200V
  • Package: 28-SOIC
  • Supply Voltage Range: 10V to 20V
  • Rise Time: 90ns
  • Fall Time: 40ns
  • Supply and Demand Status: balanced
