The Infineon Technologies IRF3703 is an N-channel MOSFET with a drain-source breakdown voltage of 30V and a maximum continuous drain current of 210A @ 25°C.

• Drain-Source Breakdown Voltage: 30V
• Continuous Drain Current: 210A @ 25°C
• Gate-Source Threshold Voltage: 4V @ 250μA
• Maximum Gate Charge: 209nC @ 10V
• Maximum Rds On: 2.8 mOhm @ 76A, 10V
• Power Dissipation: 3.8W (Ta), 230W (Tc)
• Mounting Type: Through Hole

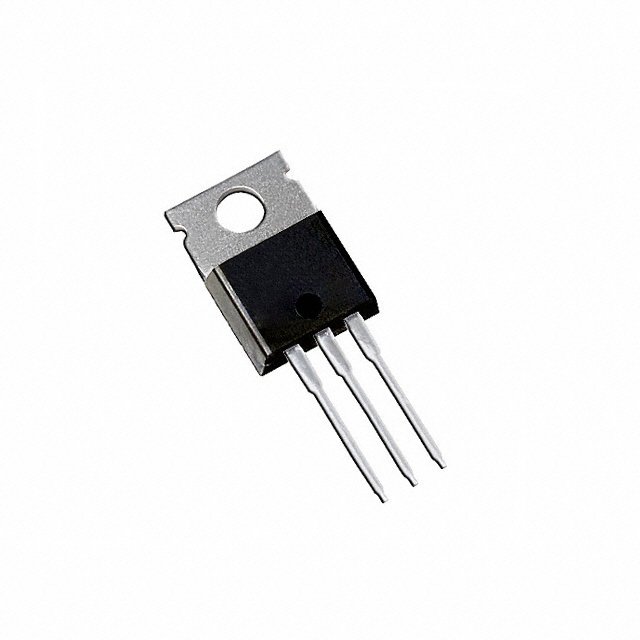

• Case/Package: TO-220AB
• Drive Voltage: 7V (max Rds On) and 10V (min Rds On)
• Maximum Input Capacitance: 8250pF @ 25V
• Maximum Gate-Source Voltage: ±20V
• Category: Discrete Semiconductor Products
• Status: Active
