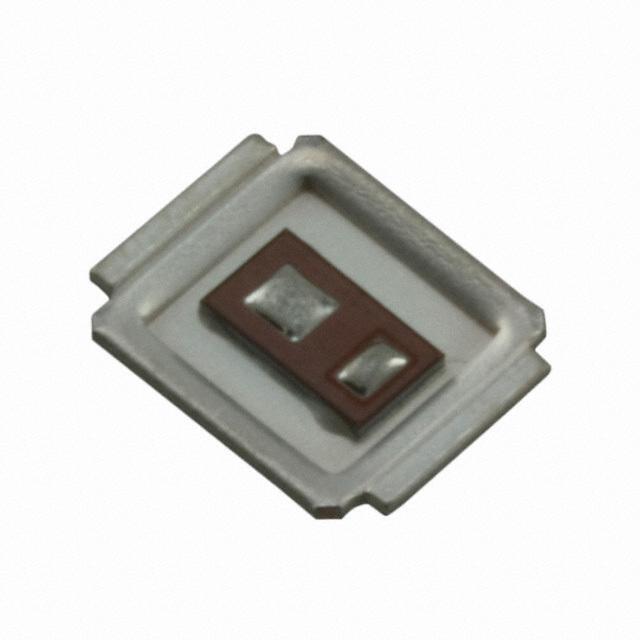

IRF6631TR1PBF Infineon Technologies
Same model may have multiple batches, images only for reference.

IRF6631TR1PBF

Part No IRF6631TR1PBF
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 30V 13A DIRECTFET
Datasheet
IRF6631TR1PBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Obsolete(EOL)
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 30V
Continuous Drain Current at 25°C 13A (Ta), 57A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 2.35V @ 25μA
Max Gate Charge 18nC @ 4.5V
Max Input Capacitance 1450pF @ 15V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 2.2W (Ta), 42W (Tc)
Maximum Rds On at Id,Vgs 7.8 mOhm @ 13A, 10V
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package DIRECTFET SQ
Dimension DirectFET Isometric SQ
Win Source Part Number 124517-IRF6631TR1PBF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian IRF6631TR1PBF CAD Model

Description

The Infineon Technologies MOSFET is a high-performance N-channel transistor designed for use in discrete semiconductor products.

  • Drain-Source Breakdown Voltage: 30V
  • Continuous Drain Current: 13A (Ta), 57A (Tc) @ 25°C
  • Gate-Source Threshold Voltage: 2.35V @ 25μA
  • Maximum Gate Charge: 18nC @ 4.5V
  • Maximum Rds On at Id,Vgs: 7.8 mOhm @ 13A, 10V
  • Part Status: Obsolete (EOL)
  • Temperature Range: -40°C to 150°C (TJ)
  • Package: DIRECTFET SQ package.
