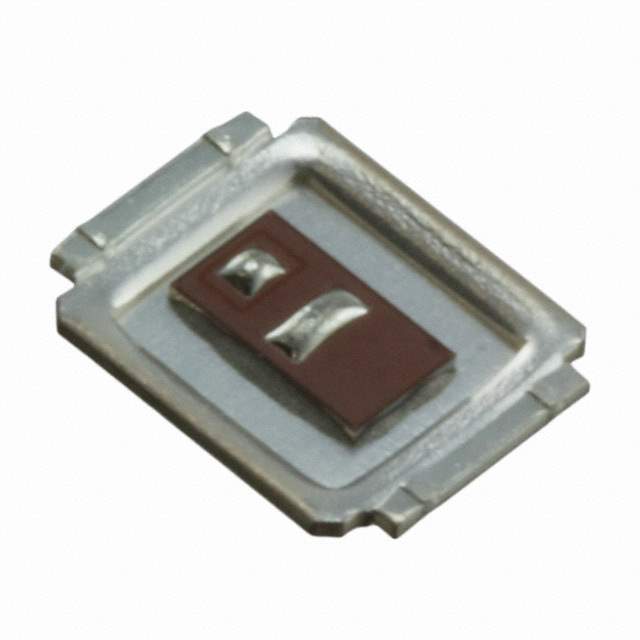

IRF6706S2TR1PBF Real Image
Same model may have multiple batches, images only for reference.

IRF6706S2TR1PBF

Part No IRF6706S2TR1PBF
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 25V 17A DIRECTFET  /  N-Channel 25 V 17A (Ta), 63A (Tc) 1.8W (Ta), 26W (Tc) Surface Mount DirectFET™ Isometric S1
Datasheet
IRF6706S2TR1PBF Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr Infineon Technologies
Series HEXFET®
Package Tape & Reel
Product Status Obsolete
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 25 V
Current - Continuous Drain (Id) @ 25°C 17A (Ta), 63A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 3.8mOhm @ 17A, 10V
Vgs(th) (Max) @ Id 2.35V @ 25µA
Gate Charge (Qg) (Max) @ Vgs 20 nC @ 4.5 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 1810 pF @ 13 V
Power Dissipation (Max) 1.8W (Ta), 26W (Tc)
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting SMD (SMT)
Supplier Device Package DirectFET™ Isometric S1
Package / Case DirectFET™ Isometric S1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names IRF6706S2TR1PBFCT,IRF6706S2TR1PBFTR,SP001528294,IRF6706S2TR1PBFDKR
Standard Package 1,000
Win Source Part Number 1023292-IRF6706S2TR1PBF
Ultra Librarian 3D Model Ultra Librarian IRF6706S2TR1PBF CAD Model

Description

The Infineon Technologies 1023292-IRF6706S2TR1PBF is a N-Channel MOSFET transistor with a drain to source voltage (Vdss) of 25 V and a power dissipation of 1.8 W (Ta), 26 W (Tc).

  • Drain to Source Voltage (Vdss): 25 V
  • Power Dissipation: 1.8 W (Ta), 26 W (Tc)
  • Continuous Drain Current (ID): 17A (Ta), 63A (Tc)
  • On-State Resistance: 3.8mOhm @ 17A, 10V
  • Gate Charge (Qg) (Max) @ Vgs: 20 nC @ 4.5 V
  • Input Capacitance (Ciss) (Max) @ Vds: 1810 pF @ 13 V
  • Suitable Applications: Transistors - FETs, MOSFETs - Single
  • Status: Obsolete
