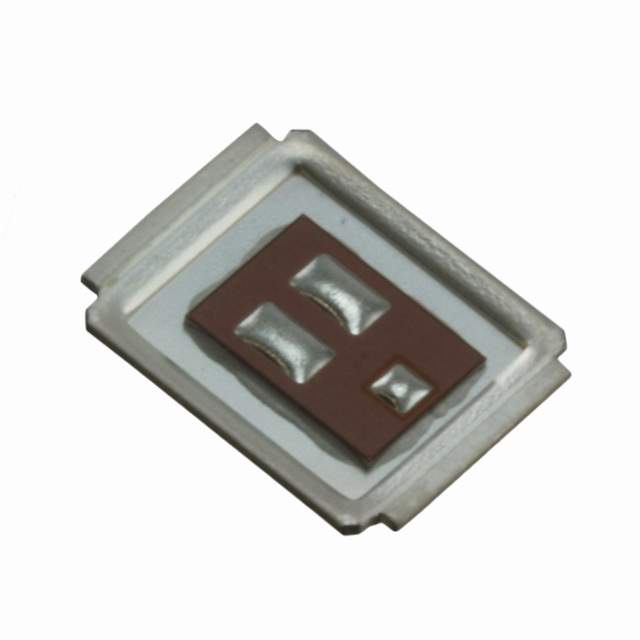

Same model may have multiple batches, images only for reference.

IRF6714MTR1PBF

Name: IRF6714MTR1PBF
Brand: Infineon Technologies
SKU: 731445
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	IRF6714MTR1PBF
Manufacturer	Infineon Technologies
Catalog	FETs - Single
Description	MOSFET N-CH 25V 29A DIRECTFET
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Infineon Technologies
Packaging	Reel
Status	Obsolete
Transistor Polarity	N-Channel
Technology	MOSFET
Vds - Drain-Source Breakdown Voltage	25V
Id - Continuous Drain Current	29A, 166A
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Maximum) at Id, Vgs	2.1mOhm at 29A, 10V
Gate Source Voltage(th) (Maximum) at Id	2.4V at 100μA
Gate Charge (Qg) (Maximum) at Vgs	44nC at 4.5V
Gate Source Voltage (Maximum)	±20V
Input Capacitance (Ciss) (Maximum) at Vds	3890pF at 13V
Power Dissipation (Maximum)	2.8W, 89W
Temperature Range - Operating	-40°C ~ 150°C
Mounting Style	SMD
Supplier Device Package	DIRECTFET MX
Manufacturer Package	DirectFET Isometric MX
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Win Source Part Number	731445-IRF6714MTR1PBF
Popularity	Low
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian IRF6714MTR1PBF CAD Model

Alternative Products

Description

The Infineon Technologies 731445-IRF6714MTR1PBF is an obsolete MOSFET with a low popularity and limited supply and demand status. The Infineon Technologies is the manufacturer.

Reference Case: DirectFET MX
Reference Date Code: N/A
