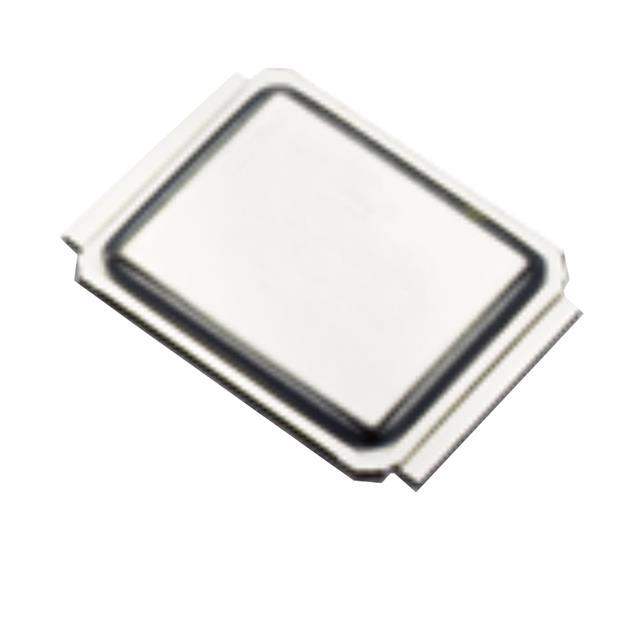

IRF7665S2TRPBF Real Image
Same model may have multiple batches, images only for reference.

IRF7665S2TRPBF

Part No IRF7665S2TRPBF
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 100V DIRECTFET SB
Datasheet
IRF7665S2TRPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 100V
Continuous Drain Current at 25°C 4.1A (Ta), 14.4A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 5V @ 25μA
Max Gate Charge 13nC @ 10V
Max Input Capacitance 515pF @ 25V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 2.4W (Ta), 30W (Tc)
Maximum Rds On at Id,Vgs 62 mOhm @ 8.9A, 10V
Temperature Range - Operating -55°C to 175°C (TJ)
Mounting SMD (SMT)
Case / Package DIRECTFET SB
Dimension DirectFET Isometric SB
Win Source Part Number 001914-IRF7665S2TRPBF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian IRF7665S2TRPBF CAD Model

Description

The Infineon Technologies IRF7665S2TRPBF is a medium popularity N-Channel MOSFET.

  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Maximum Power Dissipation: 2.4W (Ta) and 30W (Tc)
  • Gate-Source Threshold Voltage: 5V @ 25μA
  • Maximum Rds On at Id,Vgs: 62 mOhm @ 8.9A, 10V
  • Manufacturer: Infineon Technologies
  • Win Source Part Number: 001914-IRF7665S2TRPBF
