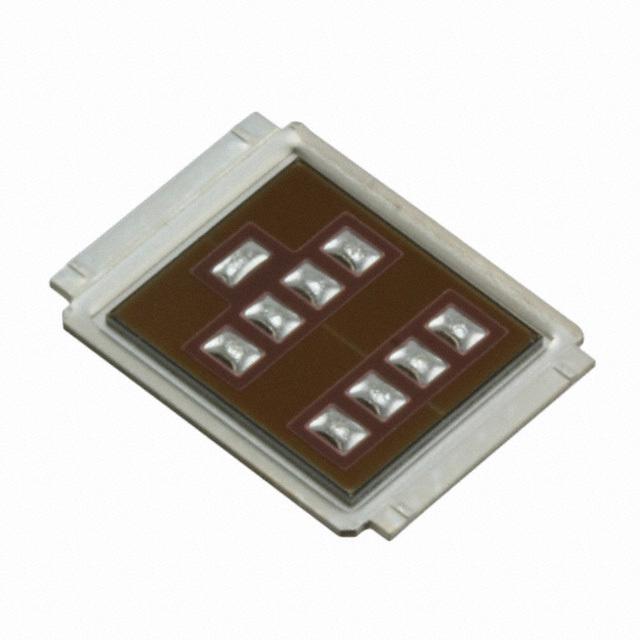

IRF7739L2TR1PBF Infineon Technologies
Same model may have multiple batches, images only for reference.

IRF7739L2TR1PBF

Part No IRF7739L2TR1PBF
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 40V 375A DIRECTFET
Datasheet
IRF7739L2TR1PBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Obsolete(EOL)
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 40V
Continuous Drain Current at 25°C 46A (Ta), 375A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 4V @ 250μA
Max Gate Charge 330nC @ 10V
Max Input Capacitance 11880pF @ 25V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 3.8W (Ta), 125W (Tc)
Maximum Rds On at Id,Vgs 1 mOhm @ 160A, 10V
Temperature Range - Operating -55°C to 175°C (TJ)
Mounting SMD (SMT)
Case / Package DIRECTFET L8
Dimension DirectFET Isometric L8
Win Source Part Number 1046701-IRF7739L2TR1PBF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian IRF7739L2TR1PBF CAD Model

Description

The Infineon Technologies 1046701-IRF7739L2TR1PBF is a MOSFET technology component with N-channel polarity.

  • Technology: MOSFET
  • Channel Polarity: N-Channel
  • Power Dissipation: 3.8W (Ta), 125W (Tc)
  • Drain-Source Breakdown Voltage: 40V
  • Mounting Type: SMD (SMT)
  • Package: DIRECTFET L8
  • Maximum Gate-Source Voltage: ±20V
  • Maximum Rds On @ Id,Vgs: 1 mOhm @ 160A, 10V
  • Supply and Demand Status: Balanced
  • Quantity per Package: 1k pcs
  • Win Source Part Number: 1046701-IRF7739L2TR1PBF
