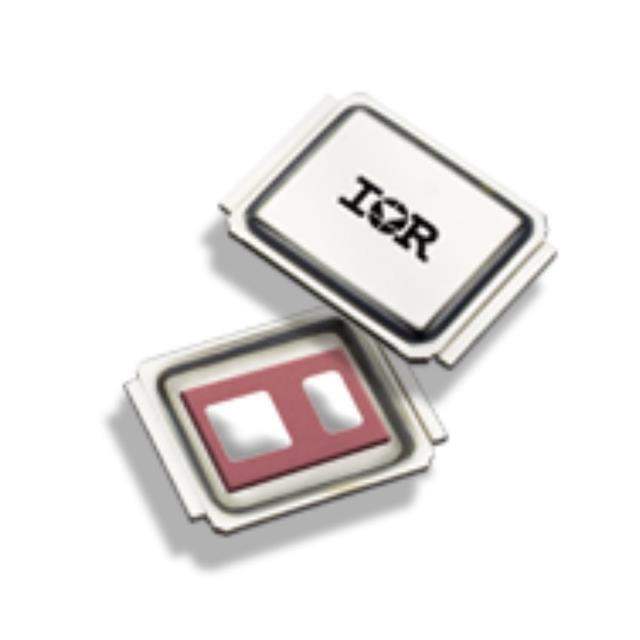

IRF8327STRPBF Real Image
Same model may have multiple batches, images only for reference.

IRF8327STRPBF

Part No IRF8327STRPBF
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 30V 14A SQ
Datasheet
IRF8327STRPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 30V
Continuous Drain Current at 25°C 14A (Ta), 60A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 2.4V @ 25μA
Max Gate Charge 14nC @ 4.5V
Max Input Capacitance 1430pF @ 15V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 2.2W (Ta), 42W (Tc)
Maximum Rds On at Id,Vgs 7.3 mOhm @ 14A, 10V
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package DIRECTFET SQ
Dimension DirectFET Isometric SQ
Win Source Part Number 069415-IRF8327STRPBF
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian IRF8327STRPBF CAD Model

Description

The Infineon Technologies 069415-IRF8327STRPBF is a high-performance N-channel MOSFET transistor.

  • Designed for use in: various applications such as DC-DC converters, motor control, and power supplies
  • Maximum Power Dissipation: 2.2W (Ta), 42W (Tc)
  • Continuous Drain Current: 14A (Ta), 60A (Tc)
  • Drain-Source Breakdown Voltage: 30V
  • Maximum Gate-Source Voltage: ±20V
  • Package: directFET isometric SQ package
  • Gate-Source Threshold Voltage: 2.4V @ 25μA
  • Maximum Rds On @ Id, Vgs: 7.3 mOhm @ 14A, 10V
  • Status: active component
  • Supply and Demand Status: sufficient
