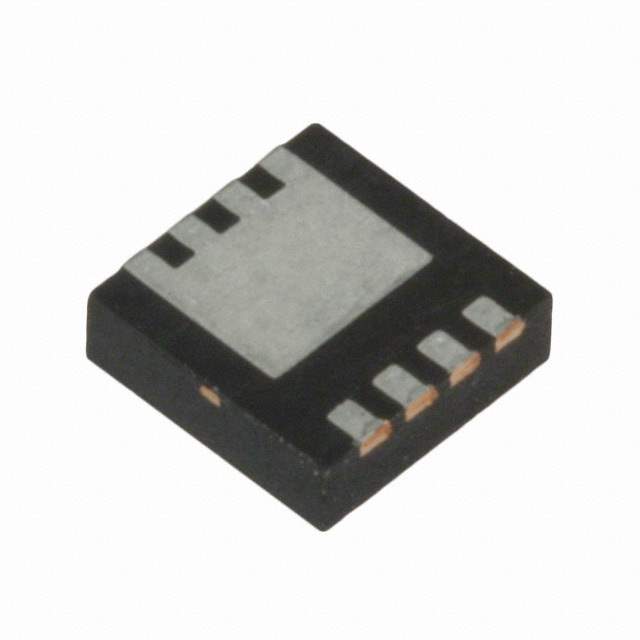

IRFH5104TRPBF Real Image
Same model may have multiple batches, images only for reference.

IRFH5104TRPBF

Part No IRFH5104TRPBF
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 40V 24A PQFN
Datasheet
IRFH5104TRPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Obsolete(EOL)
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 40V
Continuous Drain Current at 25°C 24A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 4V @ 100μA
Max Gate Charge 80nC @ 10V
Max Input Capacitance 3120pF @ 25V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 3.6W (Ta), 114W (Tc)
Maximum Rds On at Id,Vgs 3.5 mOhm @ 50A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package PQFN (5x6)
Dimension 8-VQFN Exposed Pad
Win Source Part Number 1046871-IRFH5104TRPBF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian IRFH5104TRPBF CAD Model

Description

The Infineon Technologies IRFH5104TRPBF is an N-channel MOSFET with a drain-source breakdown voltage of 40V and a continuous drain current of 24A.

  • Drain-Source Breakdown Voltage: 40V
  • Continuous Drain Current: 24A
  • Maximum Power Dissipation: 3.6W (Ta) and 114W (Tc)
  • Maximum Rds On: 3.5 mOhm @ 50A and 10V
  • Gate-Source Threshold Voltage: 4V @ 100μA
  • Maximum Gate Charge: 80nC @ 10V
  • Package: PQFN (5x6) package with dimensions of 8-VQFN Exposed Pad
  • Suitable for use in: discrete semiconductor products
