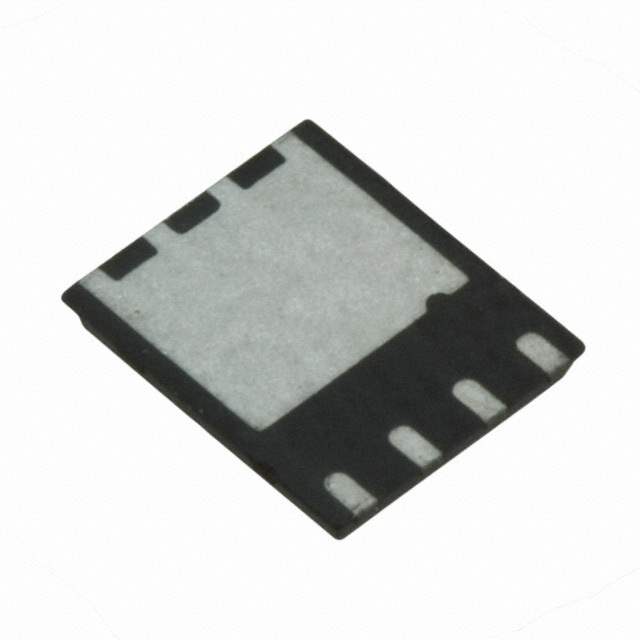

IRFH5300TRPBF

Name: IRFH5300TRPBF
Brand: Infineon Technologies
SKU: 160392
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	IRFH5300TRPBF
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 30V 40A PQFN / Trans MOSFET N-CH 30V 40A 8-Pin PQFN EP T/R
Datasheet	IRFH5300TRPBF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Infineon Technologies
Packaging	Reel - TR
Status	Active
Polarity	N-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	30V
Continuous Drain Current at 25°C	40A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Gate-Source Threshold Voltage	2.35V @ 150μA
Max Gate Charge	120nC @ 10V
Max Input Capacitance	7200pF @ 15V
Maximum Gate-Source Voltage	±20V
Power Dissipation (Max)	3.6W (Ta), 250W (Tc)
Maximum Rds On at Id,Vgs	1.4 mOhm @ 50A, 10V
Temperature Range - Operating	-55°C to 150°C (TJ)
Mounting	SMD (SMT)
Case / Package	PQFN (5x6)
Dimension	8-PowerVDFN
Win Source Part Number	017597-IRFH5300TRPBF
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Family Name	IRFH5300
Introduction Date	September 17, 2009
ECCN	EAR99
Country of Origin	China
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian IRFH5300TRPBF CAD Model

Alternative Products

Description

Infineon Technologies IRFH5300TRPBF is a high-performance N-channel MOSFET that offers excellent power dissipation of up to 3.6W (Ta) and 30V drain-source breakdown voltage.

Gate-Source Threshold Voltage: 2.35V @ 150μA
Max Gate Charge: 120nC @ 10V
Maximum Rds On: 1.4 mOhm @ 50A, 10V
Package: PQFN (5x6)
Mounting Technology: surface-mount
Widely Used in: power supplies, motor control, DC-DC converters, and many more
