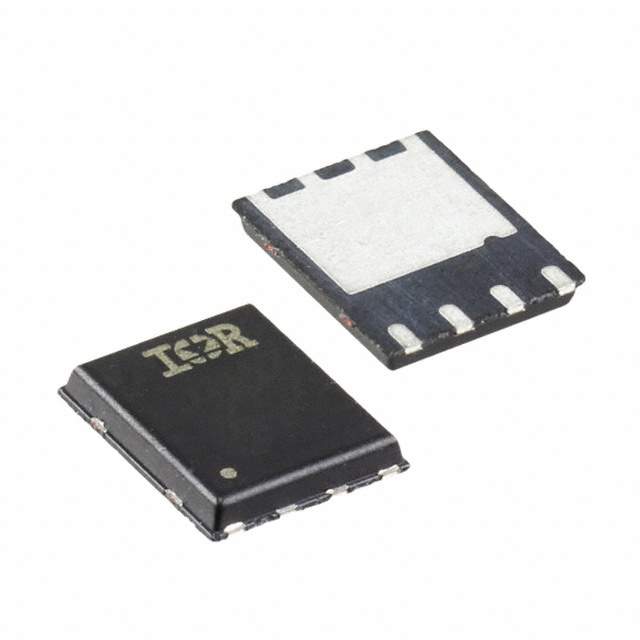

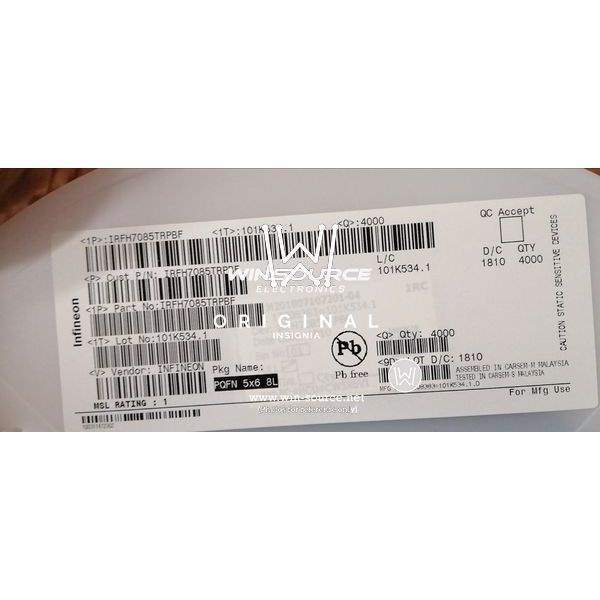

IRFH7085TRPBF Infineon Technologies IRFH7085TRPBF Real Image IRFH7085TRPBF label picture
Same model may have multiple batches, images only for reference.
IRFH7085TRPBF Infineon Technologies IRFH7085TRPBF Real Image IRFH7085TRPBF label picture
IRFH7085TRPBF Infineon Technologies IRFH7085TRPBF Real Image IRFH7085TRPBF label picture
Same model may have multiple batches, images only for reference.

IRFH7085TRPBF

Part No IRFH7085TRPBF
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 60V 23A 6-PQFN / Trans MOSFET N-CH Si 60V 23A 8-Pin PQFN EP T/R
Datasheet
IRFH7085TRPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Series StrongIRFET
Packaging Reel package
Channel Type Type N
Technology MOSFET
Drain Source Voltage 60V
Current - Continuous Drain (Id) @ 25°C 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 6V, 10V
Vgs(th) (Maximum) @ Id 3.7V @ 150μA
Gate Charge (Qg) (Maximum) @ Vgs 165nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds 6460pF @ 25V
Vgs (Maximum) ±20V
Power Dissipation (Maximum) 156W (Tc)
Rds On (Maximum) @ Id, Vgs 3.2 mOhm @ 75A, 10V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting SMD
Manufacturer Package PQFN (5x6)
Package 8-PowerVDFN
Win Source Part Number 777053-IRFH7085TRPBF
Popularity Medium
Supply and Demand Status Limited
Family Name IRFH7085PbF
Introduction Date April 14, 2014
ECCN EAR99
Country of Origin Malaysia
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian IRFH7085TRPBF CAD Model

Description

The Infineon Technologies IRFH7085TRPBF is a MOSFET transistor that is a part of the StrongIRFET series.

  • Package: 8-PowerVDFN
  • Operating Temperature Range: -55°C to 150°C (TJ)
  • Continuous Drain Current: 100A (Tc)
  • Maximum Power Dissipation: 156W (Tc)
  • Gate Charge (Qg): 165nC @ 10V
  • Input Capacitance (Ciss): 6460pF @ 25V
  • Alternative Part: DMTH6004SPS-13, RS1L180GNTB, CSD18532NQ5BT, CSD18532Q5BT
  • Introduction Date: April 14, 2014
  • Manufactured in: Malaysia
  • Estimated EOL Date: 2030
  • Popularity: Medium
  • Supply and Demand Status: Limited
