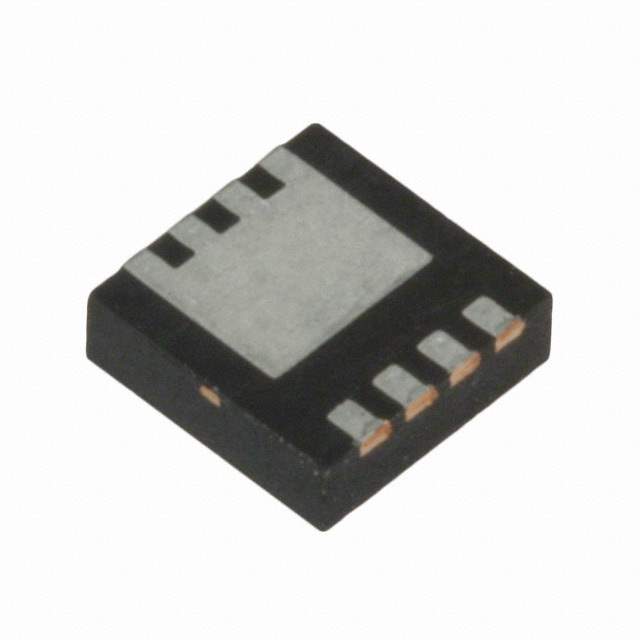

Same model may have multiple batches, images only for reference.

IRFHM830DTRPBF

Name: IRFHM830DTRPBF
Brand: Infineon Technologies
SKU: 604942
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	IRFHM830DTRPBF
Manufacturer	Infineon Technologies
Catalog	FETs - Single
Description	Synchronous MOSFET for Buck Converters \| MOSFET N-CH 30V 20A PQFN
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Infineon Technologies
Packaging	Tape and Reel
Status	Obsolete
Transistor Polarity	N-Channel
Technology	MOSFET
Vds - Drain-Source Breakdown Voltage	30V
Id - Continuous Drain Current	20A, 40A
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Maximum) at Id, Vgs	4.3mOhm at 20A, 10V
Gate Source Voltage(th) (Maximum) at Id	2.35V at 50μA
Gate Charge (Qg) (Maximum) at Vgs	27nC at 10V
Gate Source Voltage (Maximum)	±20V
Input Capacitance (Ciss) (Maximum) at Vds	1797pF at 25V
Power Dissipation (Maximum)	2.8W, 37W
Temperature Range - Operating	-55°C ~ 150°C
Mounting Style	SMD
Supplier Device Package	PQFN (3x3)
Manufacturer Package	8-VQFN Exposed Pad
Manufacturer Pack Quantity	4,000
MSL Level	1 (Unlimited)
Win Source Part Number	1187630-IRFHM830DTRPBF
Manufacturer Homepage	www.irf.com
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian IRFHM830DTRPBF CAD Model

Alternative Products

Description

The Infineon Technologies MOSFET is a high-performance N-Channel transistor designed for use in Discrete Semiconductor Products.

Vds - Drain-Source Breakdown Voltage: 30V
Id - Continuous Drain Current: 20A
Rds On (Maximum) @ Id, Vgs: 4.3mOhm @ 20A, 10V
Package: 8-VQFN Exposed Pad
Power Dissipation (Maximum): 2.8W, 37W
Mounting Style: SMD
Gate Charge (Qg) (Maximum) @ Vgs: 27nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds: 1797pF @ 25V
Gate Source Voltage (Maximum): ±20V
Supply and Demand Status: Balanced
