The Infineon Technologies 1046917-IRFHS8242TR2PBF is an N-channel MOSFET with a drain-source breakdown voltage of 25V and a continuous drain current of 9.9A @ Ta and 21A @ Tc @ 25°C.

• FET Type: N-Channel
• Voltage - Drain Source Breakdown (Vdss): 25V
• Current - Continuous Drain (Id) @ 25°C: 9.9A @ Ta, 21A @ Tc
• Power Dissipation - Max: 2.1W @ Ta

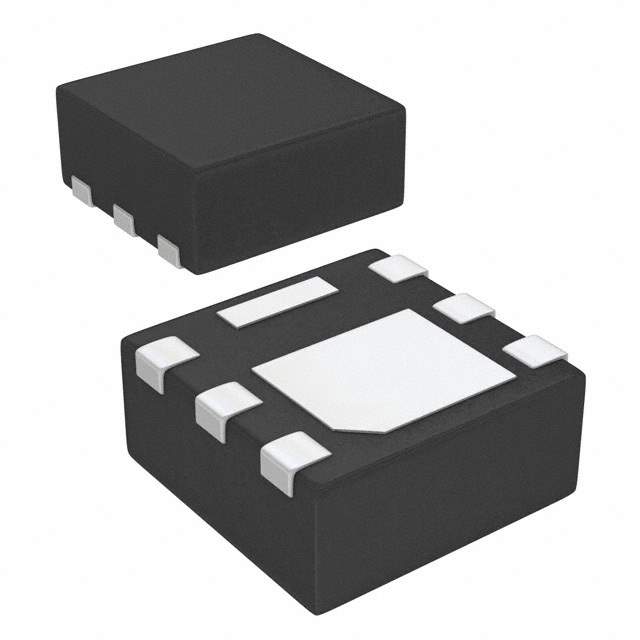

• Case/Package: 6-PQFN (2x2)
• Mounting Type: Surface Mount
• Vgs(th) (Max) @ Id: 2.35V @ 25μA
• Gate Charge (Qg) (Max) @ Vgs: 10.4nC @ 10V
• Input Capacitance (Ciss) (Max) @ Vds: 653pF @ 10V
• Rds On (Max) @ Id, Vgs: 13 mOhm @ 8.5A, 10V
• Lifecycle Status: Obsolete(EOL)
• Popularity: Medium
