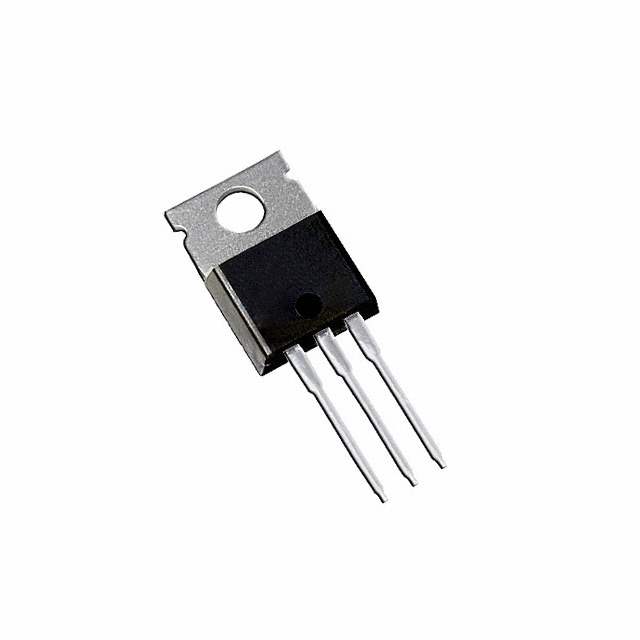

The Infineon Technologies IRL3402PBF is a N-Channel MOSFET transistor with a drain-source breakdown voltage of 20V and a continuous drain current of 85A at 25°C.

• Drain-Source Breakdown Voltage: 20V
• Continuous Drain Current: 85A @ 25°C
• Maximum Power Dissipation: 110W
• Maximum Rds On: 8 mOhm @ 51A, 7V
• Gate-Source Threshold Voltage: 700mV @ 250μA
• Maximum Gate Charge: 78nC @ 4.5V
• Maximum Input Capacitance: 3300pF @ 15V
• Package: TO-220AB case
• Dimension: TO-220-3
• Application: Discrete semiconductor products
• Temperature Range: -55°C to 150°C (TJ)
