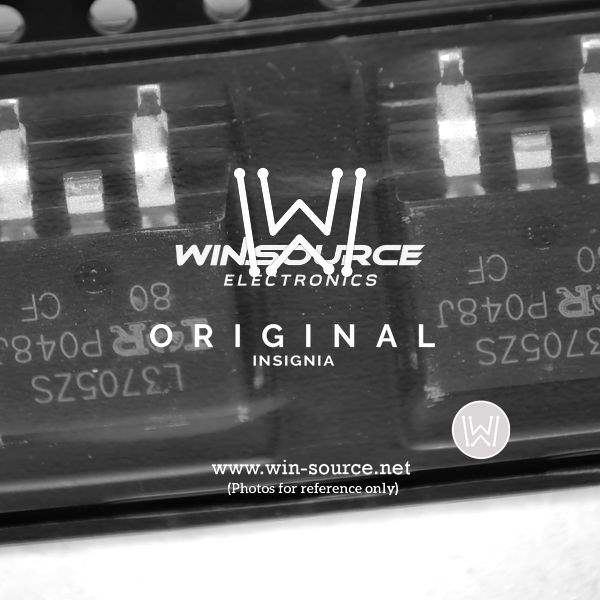

The IRL3705ZSTRLPBF is a N-channel MOSFET with a drain-source breakdown voltage of 55V and a continuous drain current of 75A (Tc) @ 25°C.

• Drain-Source Breakdown Voltage: 55V
• Continuous Drain Current: 75A (Tc) @ 25°C
• Low Rds On: 8 mOhm @ 52A, 10V
• Power Dissipation: Up to 130W (Tc)
• Mounting: Surface mount
• Package: D2PAK
• Maximum Gate-Source Voltage: ±16V
• Input Capacitance: 2880pF @ 25V
• Max Gate Charge: 60nC @ 5V
• Temperature Range: -55°C to 175°C (TJ)
• Applications: Power supplies, motor control, and DC-DC converters
