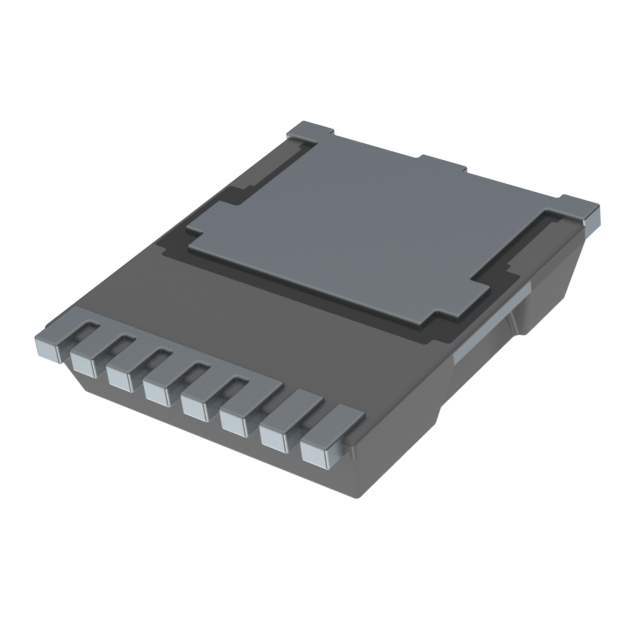

IRL40T209ATMA1

Part No IRL40T209ATMA1
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 40V 300A 8HSOF
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1309990-IRL40T209ATMA1
Category Discrete Semiconductor Products> Transistors >FETs, MOSFETs Single FETs, MOSFETs
Mfr Infineon Technologies
Packaging Tape & Reel (TR)
Part Status Obsolete
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 40 V
Current - Continuous Drain (Id) @ 25°C 300A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 0.72mOhm @ 100A, 10V
Ultra Librarian 3D Model Ultra Librarian IRL40T209ATMA1 CAD Model

Description

  • Improved Gate and Avalanche Ruggedness
  • Fully Characterized Capacitance and Avalanche SOA
  • Pb-Free;RoHS compliant;Halogen-Free
