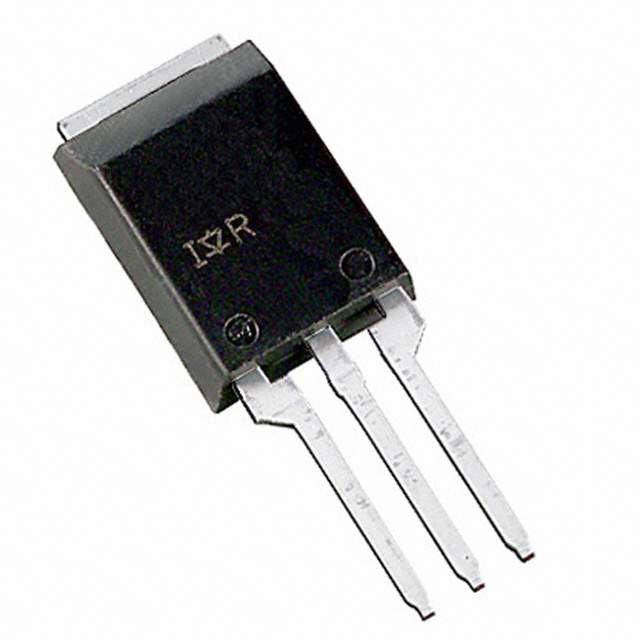

IRLBA1304PPBF Real Image
Same model may have multiple batches, images only for reference.

IRLBA1304PPBF

Part No IRLBA1304PPBF
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 40V 185A SUPER-220  /  N-Channel 40 V 185A (Tc) 300W (Tc) Through Hole SUPER-220™ (TO-273AA)
Datasheet
IRLBA1304PPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr Infineon Technologies
Series HEXFET®
Package Tube
Product Status Obsolete
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 40 V
Current - Continuous Drain (Id) @ 25°C 185A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 4mOhm @ 110A, 10V
Vgs(th) (Max) @ Id 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 140 nC @ 4.5 V
Vgs (Max) ±16V
Input Capacitance (Ciss) (Max) @ Vds 7660 pF @ 25 V
Power Dissipation (Max) 300W (Tc)
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Supplier Device Package SUPER-220™ (TO-273AA)
Package / Case TO-273AA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names *IRLBA1304PPBF
Standard Package 50
Win Source Part Number 1015931-IRLBA1304PPBF
Ultra Librarian 3D Model Ultra Librarian IRLBA1304PPBF CAD Model

Description

The Infineon Technologies IRLBA1304PPBF is a N-Channel MOSFET transistor with drain to source voltage of 40 V and continuous drain current of 185A (Tc) @ 25°C.

  • On-Resistance @ 110A, 10V: 4mOhm @ 110A, 10V
  • Maximum Gate-Source Voltage: ±16V
  • Package: Through hole TO-273AA package
  • Gate Charge @ 4.5 V: 140 nC @ 4.5 V
  • Maximum Power Dissipation (Tc): 300W (Tc)
  • Input Capacitance @ 25 V: 7660 pF @ 25 V
  • Series: HEXFET®
  • Status: Obsolete
