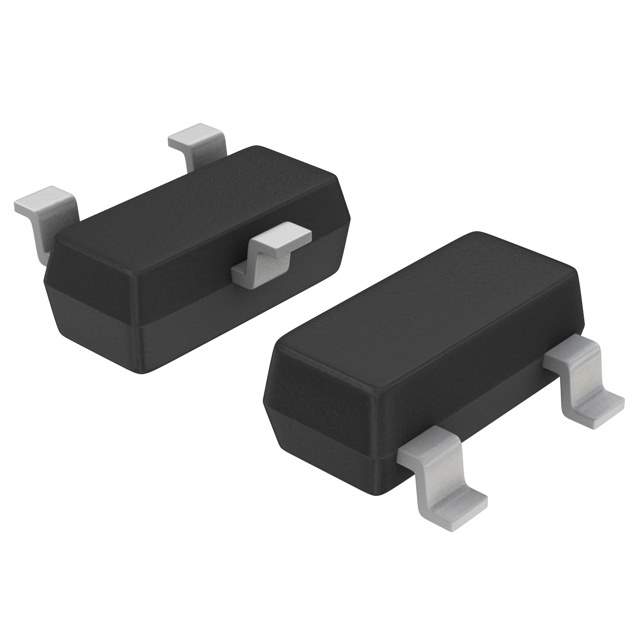

IRLML6302TR

Name: IRLML6302TR
Brand: Infineon Technologies
SKU: 605901
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IRLML6302TR
Manufacturer	Infineon Technologies
Catalog	FETs - Single
Description	generation v technology \| MOSFET P-CH 20V 780MA SOT-23
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Infineon Technologies
Packaging	Cut Tape (CT)
Status	Obsolete
Transistor Polarity	P-Channel
Technology	MOSFET
Vds - Drain-Source Breakdown Voltage	20V
Id - Continuous Drain Current	780mA
Drive Voltage (Max Rds On, Min Rds On)	2.7V, 4.5V
Rds On (Maximum) at Id, Vgs	600mOhm at 610mA, 4.5V
Gate Source Voltage(th) (Maximum) at Id	1.5V at 250μA
Gate Charge (Qg) (Maximum) at Vgs	3.6nC at 4.45V
Gate Source Voltage (Maximum)	±12V
Input Capacitance (Ciss) (Maximum) at Vds	97pF at 15V
Power Dissipation (Maximum)	540mW
Temperature Range - Operating	-55°C ~ 150°C
Mounting Style	SMD
Supplier Device Package	Micro3/SOT-23
Manufacturer Package	TO-236-3, SC-59, SOT-23-3
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Win Source Part Number	1188589-IRLML6302TR
Manufacturer Homepage	www.irf.com
Popularity	Medium
Supply and Demand Status	Sufficient
Ultra Librarian 3D Model	Ultra Librarian IRLML6302TR CAD Model

Alternative Products

Description

The IRLML6302TR is a P-Channel MOSFET manufactured by Infineon Technologies.

Maximum Power Dissipation: 540mW
Maximum Gate-Source Voltage: ±12V
Temperature Range: -55°C to 150°C
Drain-Source Breakdown Voltage: 20V
Continuous Drain Current: 780mA
Gate Source Voltage(th) (maximum) @ Id: 1.5V @ 250μA
Gate Charge (Qg) (maximum) @ Vgs: 3.6nC @ 4.45V
Input Capacitance (Ciss) (maximum) @ Vds: 97pF @ 15V
Supply and Demand Status: sufficient
