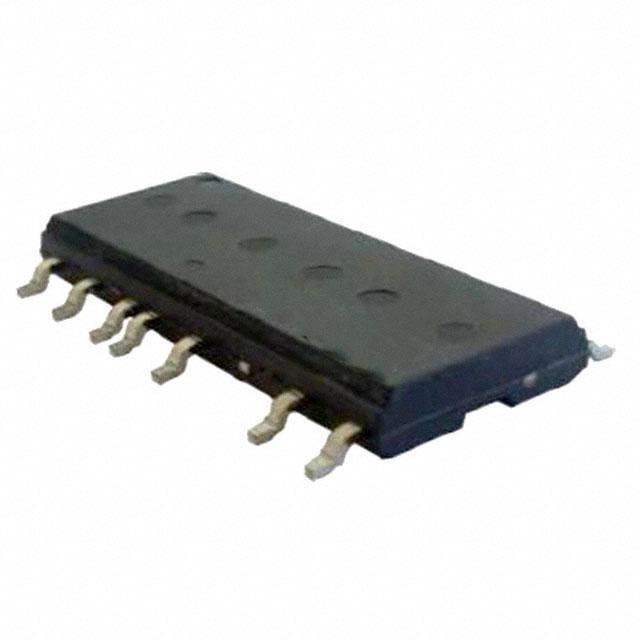

IRSM505-055PATR Infineon Technologies
Same model may have multiple batches, images only for reference.

IRSM505-055PATR

Part No IRSM505-055PATR
Manufacturer Infineon Technologies
Catalog PMIC - Full, Half - Bridge Drivers
Description IC HALF BRIDGE DRIVER 2.4A 23SOP
Datasheet
IRSM505-055PATR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1196595-IRSM505-055PATR
Manufacturer Infineon Technologies
Category Integrated Circuits (ICs) Power Management (PMIC) Full Half-Bridge Drivers
Series µIPM™-DIP
Package Tape & Reel (TR)
Product Status Obsolete
Output Configuration Half Bridge (3)
Operating Temperature -40°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 23-PowerSMD Module
Supplier Device Package 23-SOP
Ultra Librarian 3D Model Ultra Librarian IRSM505-055PATR CAD Model

Description

The Infineon Technologies µIPM™-DIP is a power management integrated circuit (IC) designed for full and half-bridge driver applications by Infineon Technologies.

  • Category: Power management (PMIC)
  • Series: µIPM™-DIP
  • Operating Temperature Range: -40°C to 150°C
  • Package: Surface mount
  • Packaging: Tape & reel
  • Output Configuration: Half bridge
  • Operating Voltage Range: -40°C to 150°C
  • Status: Obsolete
