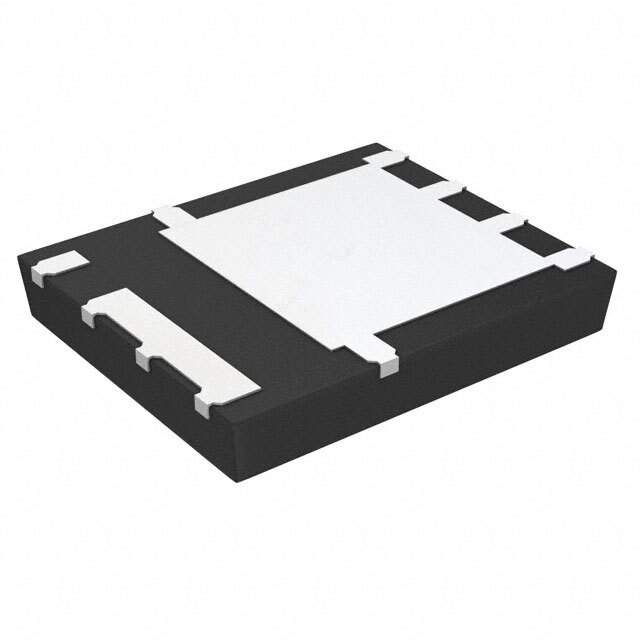

ISC0804NLSATMA1

Name: ISC0804NLSATMA1
Brand: Infineon Technologies
SKU: 1339639
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	ISC0804NLSATMA1
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 100V 12A/59A TDSON-8 / N-Channel 100 V 12A (Ta), 59A (Tc) 2.5W (Ta), 60W (Tc) Surface Mount PG-TDSON-8
Datasheet	ISC0804NLSATMA1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr	Infineon Technologies
Series	OptiMOS™ 5
Package	Tape & Reel
Product Status	Not For New Designs
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	12A (Ta) , 59A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	10.9mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2.3V @ 28µA
Gate Charge (Qg) (Max) @ Vgs	24 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1600 pF @ 50 V
Power Dissipation (Max)	2.5W (Ta) , 60W (Tc)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-TDSON-8
Package / Case	8-PowerTDFN
Base Product Number	ISC0804N
Standard Package	5,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	1339639-ISC0804NLSATMA1
Ultra Librarian 3D Model	Ultra Librarian ISC0804NLSATMA1 CAD Model

Alternative Products

Description

The ISC0804NLSATMA1 is a part of the OptiMOS 5 series and is designed for use in discrete semiconductor products.

Series: OptiMOS 5
Type: N-Channel MOSFET
Drain to Source Voltage: 100V
Power Dissipation: 2.5W
Gate-Source Voltage (Max): ±20V
Package Type: 8-PowerTDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C to 150°C
