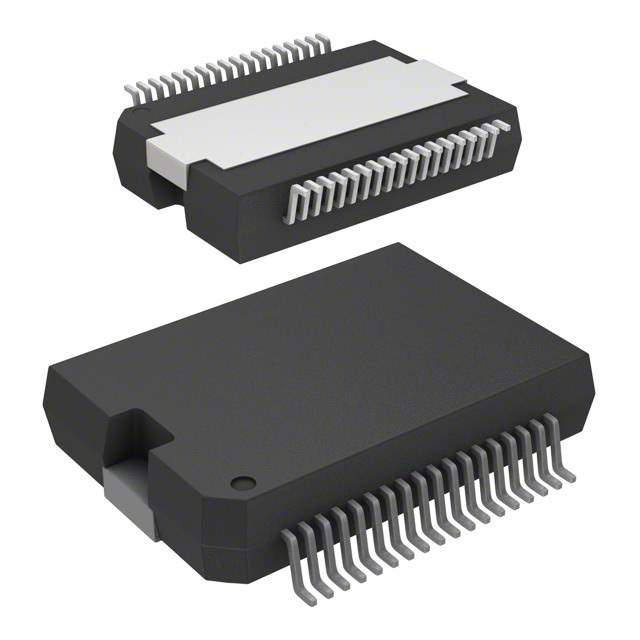

ISO1H802G Real Image
Same model may have multiple batches, images only for reference.

ISO1H802G

Part No ISO1H802G
Manufacturer Infineon Technologies
Catalog PMIC - Power Distribution Switches, Load Drivers
Description Coreless Transformer Isolated Digital Output 8 Channel 0.625A High-Side Switch
Datasheet
ISO1H802G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Infineon Technologies
Series ISOFACE
Packaging Reel - TR
Part Status Obsolete(EOL)
Switch Type Relay, Solenoid Driver
Number of Outputs 8
Output Configuration High Side
Output Type N-Channel
Interface SPI
Voltage - Load 15 V ~ 30 V
Supply Voltage 4.5 V ~ 5.5 V
Current - Output (Maximum) 625mA
Rds On (Typ) 150 mOhm
Features Auto Restart
Fault Protection Current Limiting (Fixed), Over Temperature, Over Voltage
Operating Temperature Range -25°C ~ 125°C (TJ)
Package 36-BSSOP (0.433", 11.00mm Width) Exposed Pad
Manufacturer Package PG-DSO-36
Win Source Part Number 1190601-ISO1H802G
Manufacturer Homepage www.infineon.com
Family Name ISO1H802G
Introduction Date October 15, 1999
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ISO1H802G CAD Model

Description

The Infineon Technologies ISO1H802G is a high-side switch that operates in the voltage range of 15 V to 30 V with a current output of 625 mA.

  • Voltage Range: 15 V to 30 V
  • Current Output: 625 mA
  • Output Configurations: Eight
  • Features: Auto restart and fault protection for over-temperature, over-voltage, and current limiting
  • Application: Relay and solenoid drivers
  • Output Type: N-channel
  • Interface: SPI
  • Package Size: 36-BSSOP (0.433", 11.00mm Width) Exposed Pad
  • Operating Temperature: -25°C to 125°C (TJ)
  • Status: Obsolete
  • Replaced by: ISO1H802GXT, ISO1H812GXT, and ISO1H816GXT
