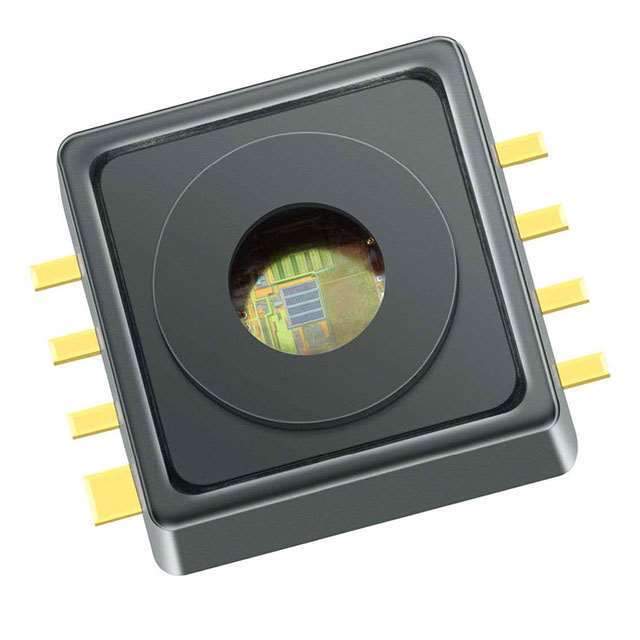

KP229F3519XTMA1 Real Image1 KP229F3519XTMA1 Real Image2
Same model may have multiple batches, images only for reference.
KP229F3519XTMA1 Real Image1 KP229F3519XTMA1 Real Image2
KP229F3519XTMA1 Real Image1 KP229F3519XTMA1 Real Image2
Same model may have multiple batches, images only for reference.

KP229F3519XTMA1

Part No KP229F3519XTMA1
Manufacturer Infineon Technologies
Catalog Pressure Sensors, Transducers
Description INTEGRATED PRESSURE SENS / Pressure Sensor 7.25PSI ~ 58.02PSI (50kPa ~ 400kPa) Absolute 0.5 V ~ 4.55 V 8-SMD Module
Datasheet
KP229F3519XTMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Infineon Technologies
Series Automotive, AEC-Q100
Package Tape & Reel
Applications Board Mount
Pressure Type Absolute
Operating Pressure 7.25PSI ~ 58.02PSI (50kPa ~ 400kPa)
Output Type Analog Voltage
Output 0.5 V ~ 4.55 V
Accuracy ±0.580PSI (±4kPa)
Voltage - Supply 4.5V ~ 5.5V
Port Style No Port
Features Amplified Output, Temperature Compensated
Termination Style SMD (SMT) Tab
Temperature Range - Operating -40°C ~ 140°C
Package / Case 8-SMD Module
Supplier Device Package PG-DSOF-8-162
Base Product Number KP229F3519
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names SP002428758,KP229F3519XTMA1-ND,KP229F3519XTMA1CT,KP229F3519XTMA1DKR,KP229F3519XTMA1TR
Standard Package 1,500
Win Source Part Number 966070-KP229F3519XTMA1
Ultra Librarian 3D Model Ultra Librarian KP229F3519XTMA1 CAD Model

Description

The KP229F3519XTMA1 is an absolute pressure sensor in an 8-SMD module package.

  • Output Type: Amplified
  • Compensation: Temperature Compensated
  • Accuracy: ±0.580PSI (±4kPa)
  • Operating Pressure Range: 7.25PSI and 58.02PSI (50kPa and 400kPa)
  • Operating Temperature Range: -40°C to 140°C
  • Operating Supply Voltage: 4.5V and 5.5V
