Same model may have multiple batches, images only for reference.

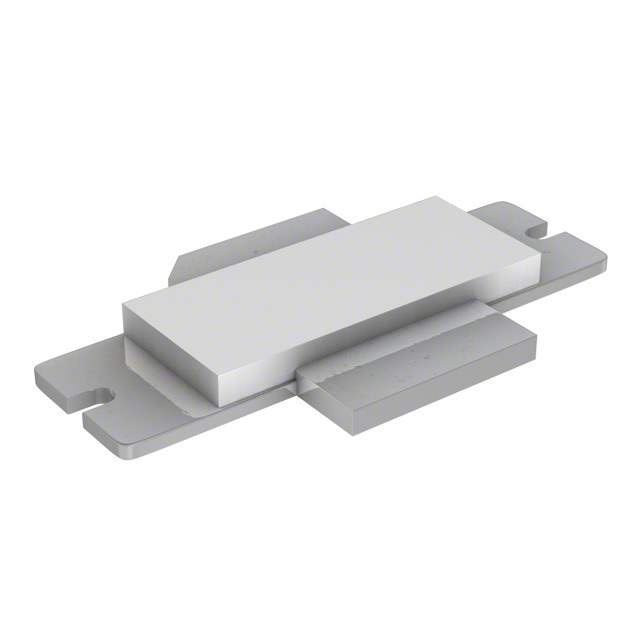

PTFA181001EV4XWSA1 Real Image
Same model may have multiple batches, images only for reference.

PTFA181001EV4XWSA1

Part No PTFA181001EV4XWSA1
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description IC FET RF LDMOS 100W H-36248-2
Datasheet
PTFA181001EV4XWSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Tray
Status Obsolete(EOL)
Transistor Polarity LDMOS
Frequency 1.88GHz
Gain 16.5dB
Voltage - Test 28V
Current Rating 1μA
Current - Test 750mA
Power - Output 100W
Voltage Rating 65V
Case / Package H-36248-2
Win Source Part Number 128059-PTFA181001EV4XWSA1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PTFA181001EV4XWSA1 CAD Model

Description

The Infineon Technologies 128059-PTFA181001EV4XWSA1 is an obsolete (EOL) product that is designed to provide high performance in a wide range of applications.

  • Voltage Rating: 65V
  • Current Rating: 1μA
  • Frequency: 1.88GHz
  • Gain: 16.5dB
  • Transistor Polarity: LDMOS
  • Voltage Test: 28V
  • Supply and Demand Status: balance
