Same model may have multiple batches, images only for reference.

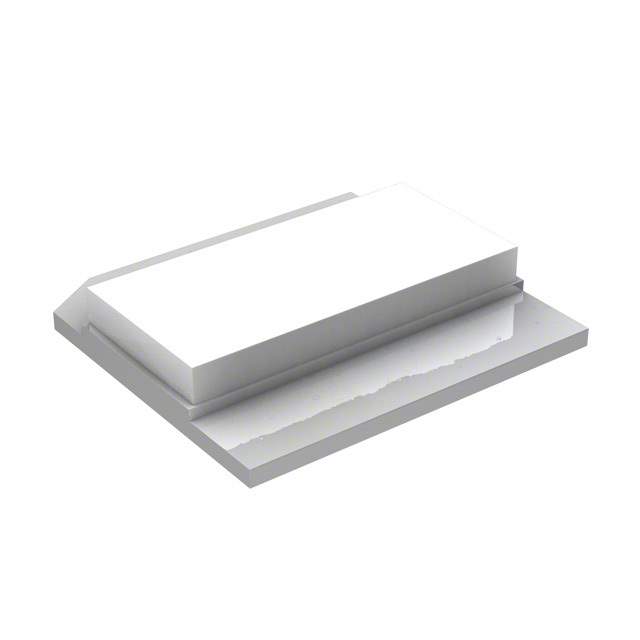

PTFA192401FV4XWSA1 Real Image
Same model may have multiple batches, images only for reference.

PTFA192401FV4XWSA1

Part No PTFA192401FV4XWSA1
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description IC FET RF LDMOS 240W H-37260-2
Datasheet
PTFA192401FV4XWSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Tray
Status Obsolete(EOL)
Transistor Polarity LDMOS
Frequency 1.96GHz
Gain 16dB
Voltage - Test 30V
Current Rating 10μA
Current - Test 1.6A
Power - Output 50W
Voltage Rating 65V
Case / Package H-37260-2
Win Source Part Number 132818-PTFA192401FV4XWSA1
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PTFA192401FV4XWSA1 CAD Model

Description

The Infineon Technologies 132818-PTFA192401FV4XWSA1 is a high-frequency LDMOS transistor designed for use in various applications including RF power amplifiers, broadcast transmitters, and industrial heating systems.

  • Voltage Rating: 65V
  • Current Rating: 10μA
  • Frequency: 1.96GHz
  • Current-test: 1.6A
  • Gain: 16dB
  • Power Output: 50W
  • Case/Package: H-37260-2
  • Supply and Demand Status: now obsolete (EOL) with limited supply.
