Same model may have multiple batches, images only for reference.

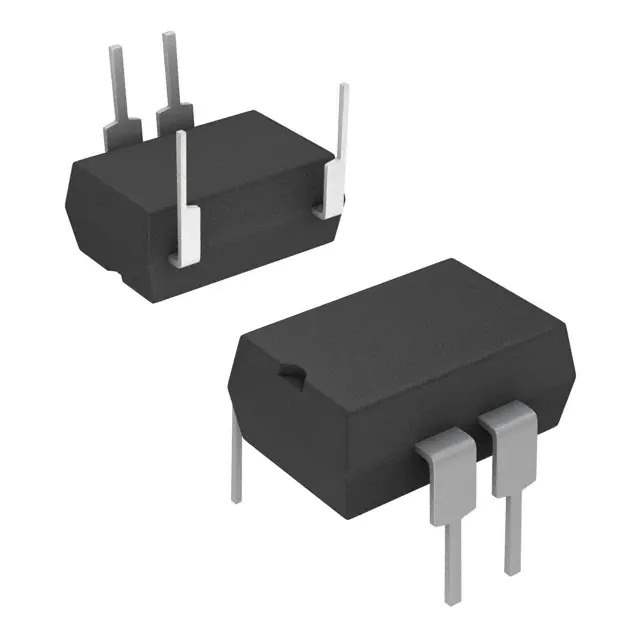

PVD1052 Real Image
Same model may have multiple batches, images only for reference.

PVD1052

Part No PVD1052
Manufacturer Infineon Technologies
Catalog Solid State Relays
Description SSR RELAY SPST-NO 160MA 0-100V / Solid State SPST-NO (1 Form A) 8-DIP (0.300", 7.62mm), 4 Leads
Datasheet
PVD1052 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Infineon Technologies
Series PVD, BOSFET®
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type DC
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 100 V
Load Current 160 mA
On-State Resistance (Max) 8 Ohms
Termination Style PC Pin
Package / Case 8-DIP (0.300", 7.62mm), 4 Leads
Supplier Device Package 8-DIP Modified
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 658152-PVD1052
Ultra Librarian 3D Model Ultra Librarian PVD1052 CAD Model

Description

The 658152-PVD1052 is a solid-state relay designed for various applications. It features a PC pin termination style and comes in a tube package.

  • Termination Style: PC Pin
  • Packaging: Tube
  • Input Voltage: 1.2VDC
  • Output Type: DC
  • Configuration: SPST (Normally Open)
  • On-State Resistance: 8 Ohms (Maximum)
  • Load Current: 160mA
  • Mounting: Through Hole
  • Package: 8-DIP (4 Leads)
  • Manufacturer: Infineon Technologies
  • Product Status: Obsolete
  • ECCN: EAR99
  • HTSUS Code: 8536.41.0030
