Same model may have multiple batches, images only for reference.

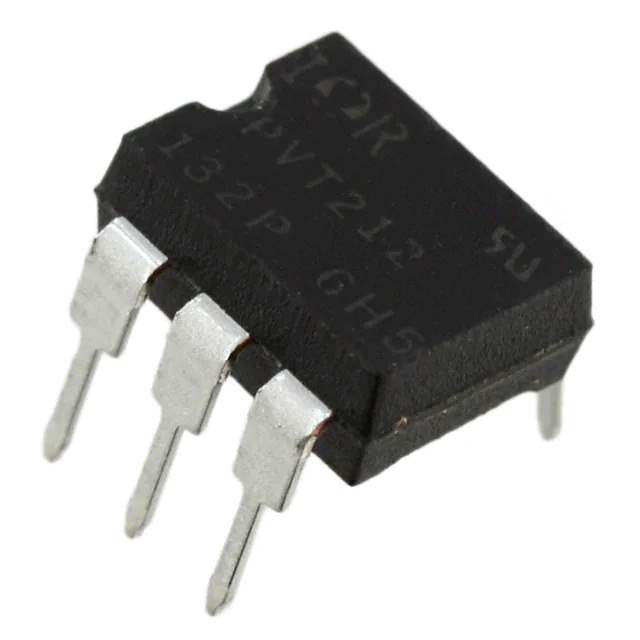

PVT212 Real Image
Same model may have multiple batches, images only for reference.

PVT212

Part No PVT212
Manufacturer Infineon Technologies
Catalog Solid State Relays
Description SSR RELAY SPST-NO 550MA 0-150V / Solid State SPST-NO (1 Form A) 6-DIP (0.300", 7.62mm)
Datasheet
PVT212 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Infineon Technologies
Series PVT, HEXFET®
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 150 V
Load Current 550 mA
On-State Resistance (Max) 750 mOhms
Termination Style PC Pin
Package / Case 6-DIP (0.300", 7.62mm)
Supplier Device Package 6-DIP
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 658212-PVT212
Ultra Librarian 3D Model Ultra Librarian PVT212 CAD Model

Description

The PVT212 is a solid state relay designed for AC and DC output.

  • Circuit: SPST-NO (1 Form A)
  • On-State Resistance (Max): 750 mOhms
  • Load Current: 550mA
  • Voltage Load: 0V to 150V
  • Mounting Type: Through Hole
  • Package: 6-DIP
  • Manufacturer: Infineon Technologies
  • Status: Obsolete
