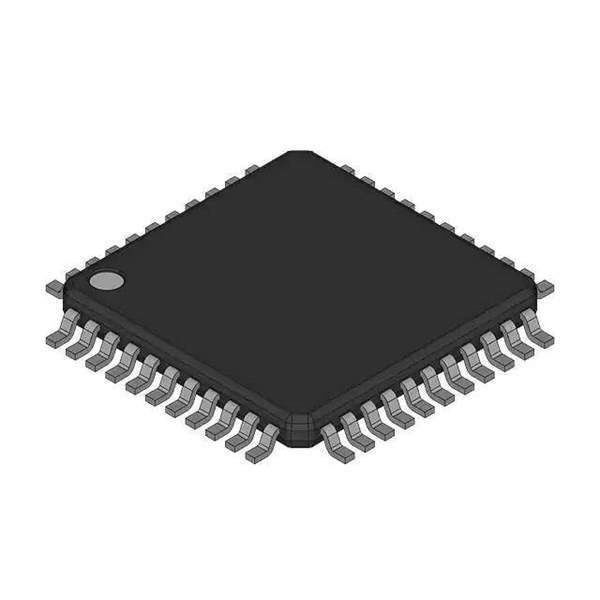

SAF-C505-LM Real Image
Same model may have multiple batches, images only for reference.

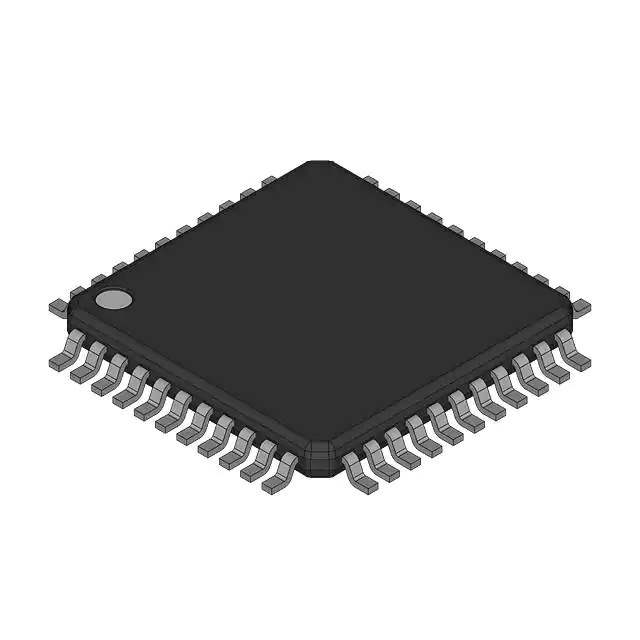

SAF-C505-LM

Part No SAF-C505-LM
Manufacturer Infineon Technologies
Catalog Embedded - Microcontrollers
Description LEGACY 8-BIT MCU
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microcontrollers
Mfr Infineon Technologies
Series C505
Package Bulk
Product Status Active
Programmable Not Verified
Core Processor 8051
Core Size 8-Bit
Speed 20MHz
Connectivity UART/USART
Peripherals POR, PWM, WDT
Number of I/O 34
Program Memory Size 16KB (16K x 8)
Program Memory Type Mask ROM
RAM Size 256 x 8
Voltage - Supply (Vcc/Vdd) 4.25V ~ 5.5V
Data Converters A/D 8x8b SAR
Oscillator Type External, Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 44-QFP
Supplier Device Package P-MQFP-44-1
Base Product Number SAF-C505
Standard Package 1 pcs
MSL Level 3 (168 Hours)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8542.31.0001
Win Source Part Number 663656-SAF-C505-LM
Ultra Librarian 3D Model Ultra Librarian SAF-C505-LM CAD Model

Description

The Infineon Technologies SAF-C505-LM is an embedded microcontroller in the Microcontrollers category.

  • Product: Infineon Technologies SAF-C505-LM
  • Category: Microcontrollers
  • Series: C505
  • Core Processor: 8051
  • Speed: 20MHz
  • Package: Bulk
  • Standard Package: 1 piece
  • I/O Pins: 34
  • Program Memory Size: 16KB
  • RAM Size: 256 x 8
  • Connectivity: UART/USART
  • Peripherals: POR, PWM, WDT
  • Operating Temperature: -40°C to 85°C
  • Status: active
  • Manufacturer: Infineon Technologies
