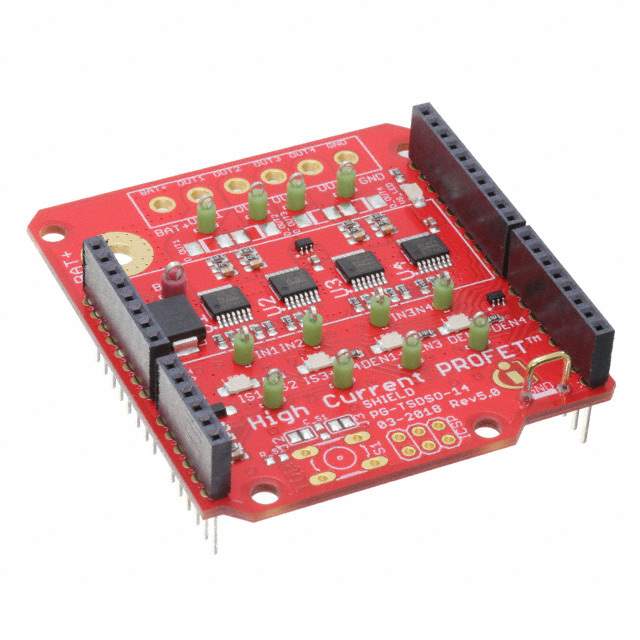

The SHIELDBTS70061EPPTOBO1 is a high-side power switch manufactured by Infineon Technologies. It is designed for automotive applications, providing protection and control for various loads such as lamps, solenoids, and motors. This device incorporates features like overcurrent protection, overvoltage protection, and thermal shutdown to ensure reliable operation in harsh automotive environments.

Applications

• Automotive Lighting: Used to control and protect automotive lighting systems, such as headlights and taillights.
• Solenoid Control: Drives and protects solenoids in automotive systems, such as door locks and fuel injectors.
• Motor Control: Controls small DC motors in applications like power windows and windshield wipers.
• Relay Replacement: Replaces mechanical relays with a solid-state solution, improving reliability and performance.
• Automotive Body Electronics: Used in various body electronic systems to control and protect electrical loads.

Features

• High-Side Switch: Operates as a high-side switch, simplifying load connection and control.
• Overcurrent Protection: Includes overcurrent protection to prevent damage from excessive current.
• Overvoltage Protection: Incorporates overvoltage protection to protect the switch from voltage spikes.
• Thermal Shutdown Protection: Includes thermal shutdown protection to prevent overheating.
• Diagnostic Feedback: Provides diagnostic feedback to the microcontroller for fault detection.

Benefits

• Enhanced Protection: Provides comprehensive protection for electrical loads and the switch itself.
• Improved Reliability: Solid-state design improves reliability compared to mechanical relays.
• Simplified System Design: High-side switch configuration simplifies system design.
• Diagnostic Capabilities: Diagnostic feedback enables early fault detection and system maintenance.
• Automotive Compliance: Designed to meet automotive industry standards and requirements.

Additional Details

The SHIELDBTS70061EPPTOBO1 typically operates with a supply voltage of 12V. The output current capability is typically up to 6A. The device includes protection features such as short-circuit protection and reverse polarity protection. It is important to consult the datasheet for specific electrical characteristics, such as the exact operating voltage range, output current capability, and protection thresholds, as these can vary based on the specific part number and manufacturing date. The operating temperature range is typically from -40°C to +150°C. The SHIELDBTS70061EPPTOBO1 is often available in PG-TO252 or similar surface-mount packages.
