Same model may have multiple batches, images only for reference.

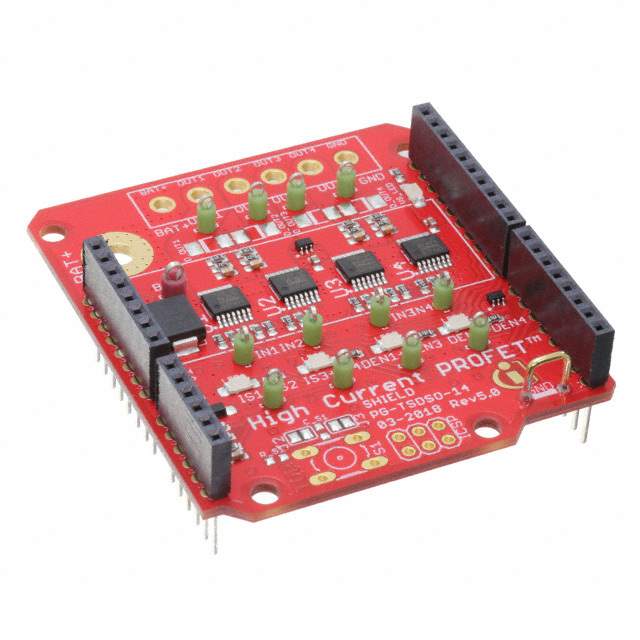

SHIELDBTS70081EPPTOBO1 Real Image
Same model may have multiple batches, images only for reference.

SHIELDBTS70081EPPTOBO1

Part No SHIELDBTS70081EPPTOBO1
Manufacturer Infineon Technologies
Catalog Evaluation Boards - Expansion Boards
Description BTS7008-1EPP SHIELD FOR ARDUINO  /  BTS7008-1EPP Switch Power Management Platform Evaluation Expansion Board
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation Boards - Expansion Boards, Daughter Cards
Mfr Infineon Technologies
Series PROFET™+2
Package Box
Type Power Management
Function Switch
Utilized IC / Part BTS7008-1EPP
Contents Board(s)
Base Product Number SHIELDBTS70081
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Other Names 448-SHIELDBTS70081EPPTOBO1,SP005122328
Standard Package 1
Win Source Part Number 977192-SHIELDBTS70081EPPTOBO1
Ultra Librarian 3D Model Ultra Librarian SHIELDBTS70081EPPTOBO1 CAD Model

Description

The Infineon Technologies SHIELDBTS70081EPPTOBO1 is an evaluation board for the BTS7008-1EPP PROFET™+2 power management switch.

  • Package: Box
  • Supplied: Single Standard Package
  • Function: Switch
  • Compatibility: Interconnect Systems
  • Manufacturer: Infineon Technologies
  • Packaging: Tube
  • High Side Voltage: 600V
  • Peak Output Current (Source): 290mA
  • Peak Output Current (Sink): 600mA
  • Application: Development Boards, Kits, Programmers, Expansion Board Daughter Card
  • ECCN: EAR99
  • REACH: Unaffected
