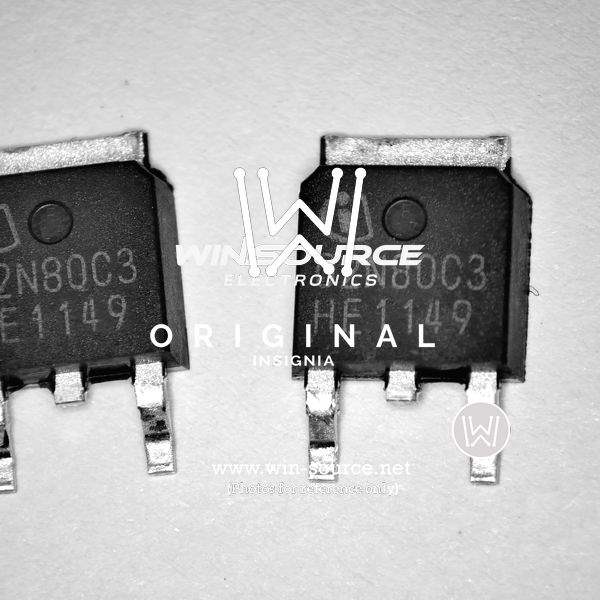

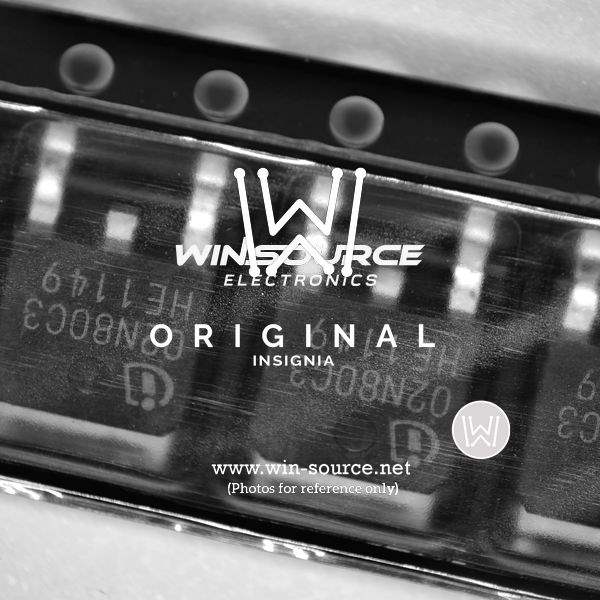

SPD02N80C3 Infineon Technologies SPD02N80C3 Real Image1 SPD02N80C3 Real Image2
Same model may have multiple batches, images only for reference.
SPD02N80C3 Infineon Technologies SPD02N80C3 Real Image1 SPD02N80C3 Real Image2
SPD02N80C3 Infineon Technologies SPD02N80C3 Real Image1 SPD02N80C3 Real Image2
Same model may have multiple batches, images only for reference.

SPD02N80C3

Part No SPD02N80C3
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 800V 2A 3TO252
Datasheet
SPD02N80C3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 800V
Continuous Drain Current at 25°C 2A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 3.9V @ 120μA
Max Gate Charge 16nC @ 10V
Max Input Capacitance 290pF @ 100V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 42W (Tc)
Maximum Rds On at Id,Vgs 2.7 Ohm @ 1.2A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package PG-TO252-3
Dimension TO-252-3, DPak (2 Leads + Tab), SC-63
Win Source Part Number 094231-SPD02N80C3
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SPD02N80C3 CAD Model

Description

The Infineon Technologies SPD02N80C3 is an N-channel MOSFET that is highly popular in the market.

  • Maximum Power Dissipation: 42W (Tc)
  • Drain-Source Breakdown Voltage: 800V
  • Continuous Drain Current: 2A (Tc)
  • Ideal for: use in various electronic applications that require a reliable and high-performance MOSFET.
