Same model may have multiple batches, images only for reference.

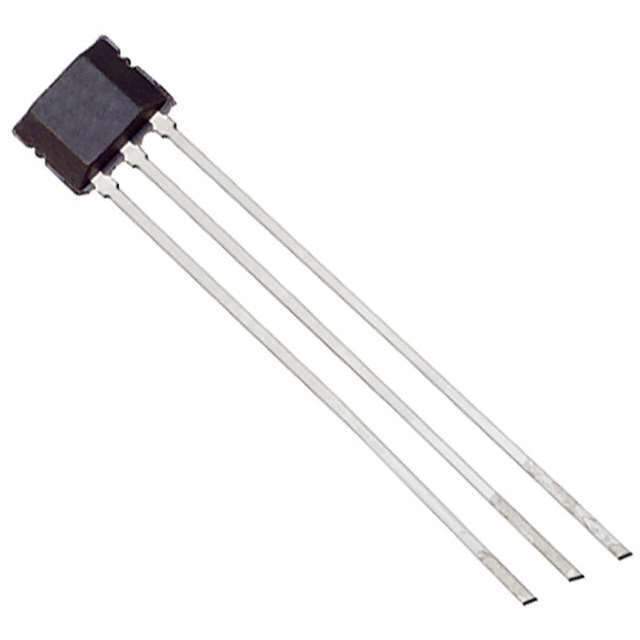

TLE4905LHALA1 Real Image
Same model may have multiple batches, images only for reference.

TLE4905LHALA1

Part No TLE4905LHALA1
Manufacturer Infineon Technologies
Catalog Magnetic Sensors - Switches (Solid State)
Description MAGNETIC SWITCH UNIPOL PSSO-3-2
Datasheet
TLE4905LHALA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Infineon Technologies
Packaging AMMO PACKAGE
Status Not For New Designs
Purpose Unipolar Switch
Technology Hall Effect
Polarization South Pole
Sensing Range 18mT Trip, 5mT Release
Testing Conditions 25°C
Supply Voltage - Operating 3.8 V to 24 V
Current - Supply (Max) 8mA
Current - Output (Max) 100mA
Output Type Open Collector
Features Temperature Compensated
Temperature Range - Operating -40°C to 150°C (TJ)
Case / Package P-SSO-3-2
Win Source Part Number 1108684-TLE4905LHALA1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TLE4905LHALA1 CAD Model

Description

The Infineon Technologies TLE4905LHALA1 is a temperature compensated unipolar switch sensor with a sensing range of 18mT trip and 5mT release.

  • Technology: Hall Effect
  • Output Type: Open Collector
  • Polarization: South Pole
  • Operating Temperature: -40°C to 150°C
  • Supply Voltage: 3.8V to 24V
  • Mounting: SMD (SMT)
  • Case/Package: P-SSO-3-2
  • Max Current Supply: 8mA
  • Max Output Current: 100mA
  • Application: Sensors and Transducers
