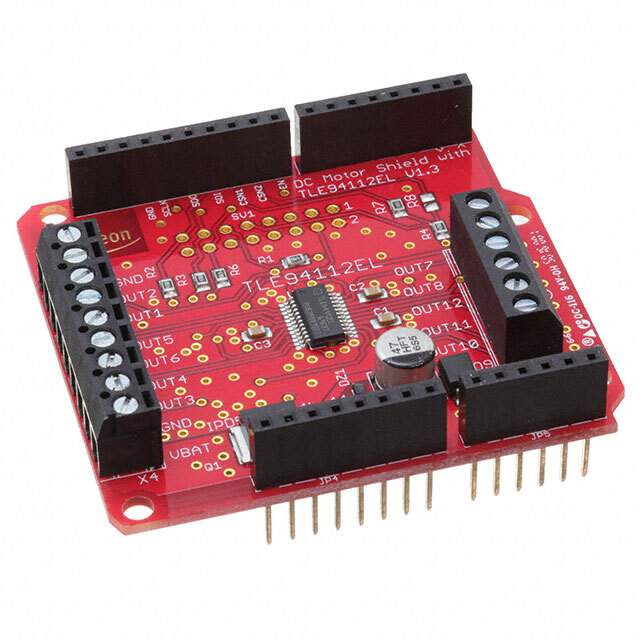

TLE94112ELSHIELDTOBO1 Real Image
Same model may have multiple batches, images only for reference.

TLE94112ELSHIELDTOBO1

Part No TLE94112ELSHIELDTOBO1
Manufacturer Infineon Technologies
Catalog Evaluation Boards - Expansion Boards
Description DC MOTOR SHIELD TLE94112EL / TLE94112EL Motor Controller/Driver Power Management Arduino Platform Evaluation Expansion Board
Datasheet
TLE94112ELSHIELDTOBO1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation Boards - Expansion Boards, Daughter Cards
Mfr Infineon Technologies
Package Box
Platform Arduino
Type Power Management
Function Motor Controller/Driver
Utilized IC / Part TLE94112EL
Contents Board(s)
Base Product Number TLE94112
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Other Names SP001661996,448-TLE94112ELSHIELDTOBO1
Standard Package 1
Win Source Part Number 1099778-TLE94112ELSHIELDTOBO1
Ultra Librarian 3D Model Ultra Librarian TLE94112ELSHIELDTOBO1 CAD Model

Description

The Infineon Technologies TLE94112EL Shield is a power management development board that is designed to control and drive motors.

  • Compatibility: Arduino Compatible
  • Ease of Use: Easy to Use
  • IC Included: TLE94112EL IC
  • Current Hold: 200 mA
  • Voltage Off State: 1.6 kV
  • Mounting: Chassis Mount
  • Package: Module
  • Operating Temperature: 130 degrees Celsius
  • Application: Motor Control
