Same model may have multiple batches, images only for reference.

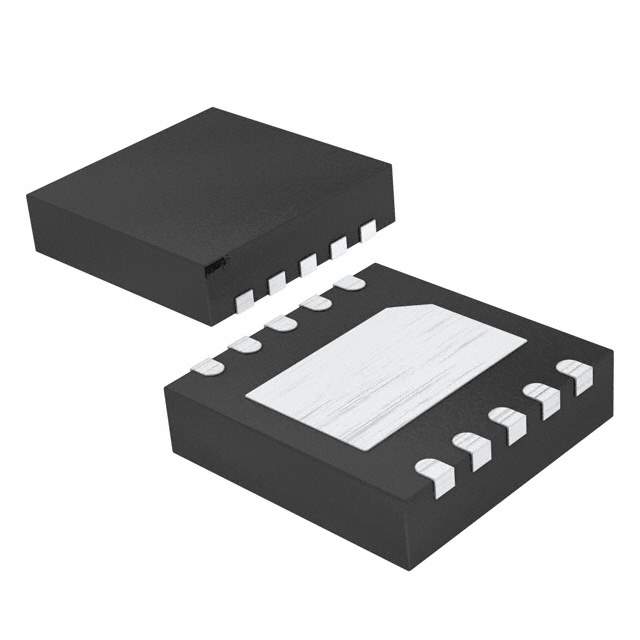

TLS205B0LDVXUMA1 Real Image
Same model may have multiple batches, images only for reference.

TLS205B0LDVXUMA1

Part No TLS205B0LDVXUMA1
Manufacturer Infineon Technologies
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LIN POS ADJ 500MA TSON-10  /  Linear Voltage Regulator IC Positive Adjustable 1 Output 500mA PG-TSON-10
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Voltage Regulators - Linear
Mfr Infineon Technologies
Series Automotive, AEC-Q100, OPTIREG™
Package Tape & Reel
Output Configuration Positive
Output Type Adjustable
Number of Regulators 1
Voltage - Input (Max) 20V
Voltage - Output (Min/Fixed) 1.22V
Voltage - Output (Max) 20V
Voltage Dropout (Max) 0.45V @ 500mA
Current - Output 500mA
Current - Quiescent (Iq) 60 µA
Current - Supply (Max) 31 mA
PSRR 65dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature, Reverse Polarity
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting SMD (SMT)
Package / Case 10-TFDFN Exposed Pad
Supplier Device Package PG-TSON-10
Base Product Number TLS205
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names SP001304002,TLS205B0LDVXUMA1DKR,2156-TLS205B0LDVXUMA1,INFINFTLS205B0LDVXUMA1,TLS205B0LDVXUMA1TR,TLS205B0LDVXUMA1CT
Standard Package 5,000
Win Source Part Number 966553-TLS205B0LDVXUMA1
Ultra Librarian 3D Model Ultra Librarian TLS205B0LDVXUMA1 CAD Model

Description

The TLS205B0LDVXUMA1 is an adjustable linear voltage regulator from Infineon Technologies.

  • Series: OPTIREG™
  • Application: Automotive
  • Maximum Output Voltage: 20V
  • Minimum/Fixed Output Voltage: 1.22V
  • Maximum Current: 500mA
  • Quiescent Current: 60μA
  • Output Configuration: Positive
  • Operating Temperature: -40°C to 125°C
  • Protection Features: Over current, over temperature, and reverse polarity
  • Enable Control: Yes
  • Package: 10-TFDFN exposed pad
  • Package Type: Tape and reel
  • PSRR: 65dB @ 120Hz
  • Standard Package: 5,000
