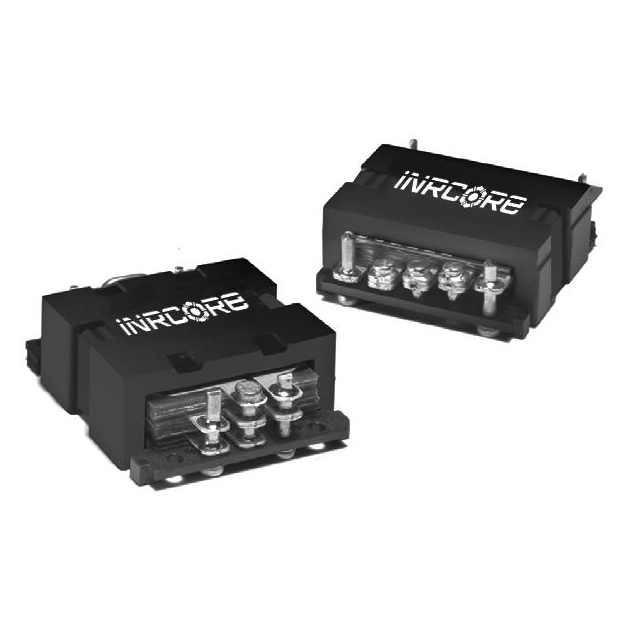

R8201NL iNRCORE, LLC – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

R8201NL

Part No R8201NL
Manufacturer iNRCORE, LLC
Catalog Power Transformers
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer iNRCORE, LLC
Packaging Tube
Type Planar
Primary Winding(s) Dual
Secondary Winding(s) Single, Multiple Taps
Center Tap No
Power - Max 250W
Mounting Type Surface Mount
Termination Style Solder, Quick Connect
Size / Dimension 29.46mm L x 25.40mm W
Height - Seated (Max) 10.20mm
Voltage - Isolation 1750VDC
RoHS Status ROHS3 Compliant
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 1480647-R8201NL
Ultra Librarian 3D Model Ultra Librarian R8201NL CAD Model
