Same model may have multiple batches, images only for reference.

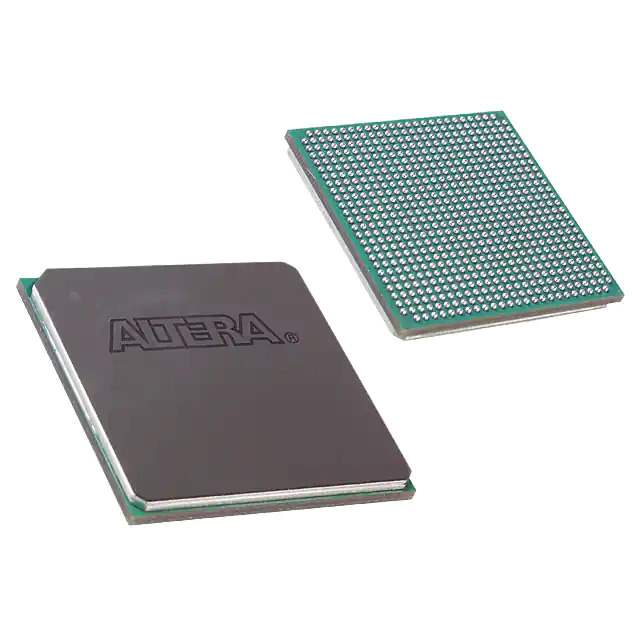

10AX016E4F27E3SG Real Image
Same model may have multiple batches, images only for reference.

10AX016E4F27E3SG

Part No 10AX016E4F27E3SG
Manufacturer Intel
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 240 I/O 672FBGA / Arria 10 GX Field Programmable Gate Array (FPGA) IC 240 10086400 160000 672-BBGA, FCBGA
Datasheet
10AX016E4F27E3SG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - FPGAs (Field Programmable Gate Array)
Mfr Intel
Series Arria 10 GX
Package Tray
Product Status Active
Programmable Not Verified
Number of LABs/CLBs 61510
Number of Logic Elements/Cells 160000
Total RAM Bits 10086400
Number of I/O 240
Voltage - Supply 0.87V ~ 0.93V
Mounting Type Surface Mount
Temperature Range - Operating 0°C ~ 100°C (TJ)
Package / Case 672-BBGA, FCBGA
Supplier Device Package 672-FBGA (27x27)
Standard Package 1 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A002A1
HTSUS 8542.39.0001
Win Source Part Number 853690-10AX016E4F27E3SG
Ultra Librarian 3D Model Ultra Librarian 10AX016E4F27E3SG CAD Model

Description

The 853690-10AX016E4F27E3SG is an embedded field programmable gate array (FPGA) integrated circuit (IC) from Intel by Intel.

  • Series: Arria 10 GX
  • I/O Pins: 240
  • LABs/CLBs: 61510
  • Logic Elements/Cells: 160000
  • RAM Capacity: 10086400 bits
  • Voltage Supply Range: 0.87V to 0.93V
  • Mounting: Surface Mountable
  • Package: 672-BBGA
  • Operating Temperature: 0°C to 100°C
  • Product Status: Active
