Same model may have multiple batches, images only for reference.

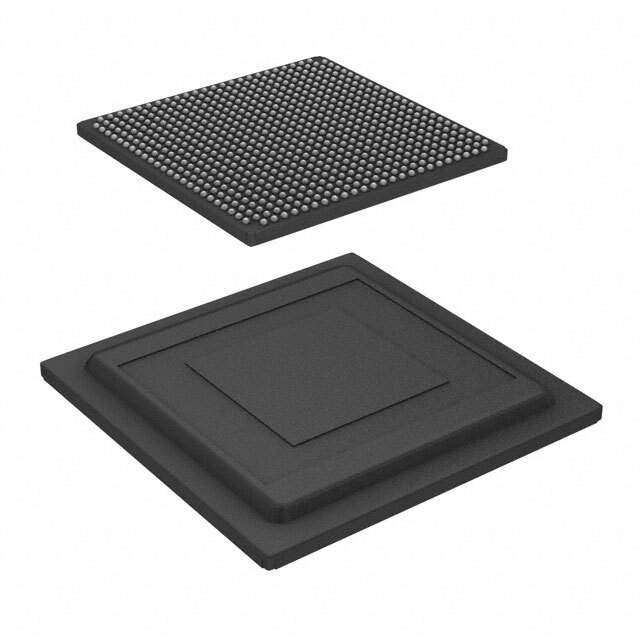

5AGXMA3D4F27C4G Real Image
Same model may have multiple batches, images only for reference.

5AGXMA3D4F27C4G

Part No 5AGXMA3D4F27C4G
Manufacturer Intel
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 336 I/O 672FBGA  /  series Field Programmable Gate Array (FPGA) IC 336 11746304 156000 672-BBGA, FCBGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - FPGAs (Field Programmable Gate Array)
Mfr Intel
Series Arria V GX
Package Tray
Number of LABs/CLBs 7362
Number of Logic Elements/Cells 156000
Total RAM Bits 11746304
Number of I/O 336
Voltage - Supply 1.07V ~ 1.13V
Mounting SMD (SMT)
Temperature Range - Operating 0°C ~ 85°C (TJ)
Package / Case 672-BBGA, FCBGA
Supplier Device Package 672-FBGA (27x27)
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991D
HTSUS 8542.39.0001
Standard Package 40
Win Source Part Number 1231947-5AGXMA3D4F27C4G
Ultra Librarian 3D Model Ultra Librarian 5AGXMA3D4F27C4G CAD Model

Description

The 5AGXMA3D4F27C4G is an FPGA IC from Intel's Arria V GX series of integrated circuits.

  • Series: Arria V GX
  • Package: Tray
  • Standard Package: 40
  • Mounting Type: SMD (SMT)
  • Number of I/Os: 336
  • Number of LABs/CLBs: 7362
  • Number of Logic Elements/Cells: 156000
  • Total RAM Bits: 11746304
  • Voltage Supply: 1.07V ~ 1.13V
  • Operating Temperature: 0°C ~ 85°C
