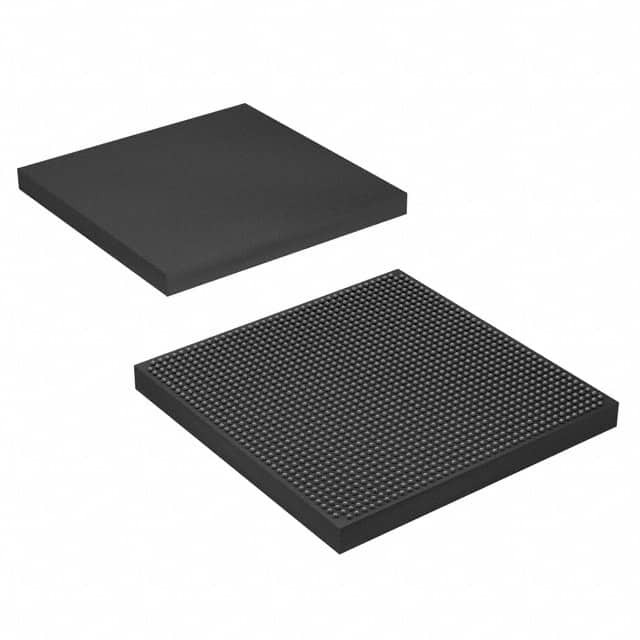

Same model may have multiple batches, images only for reference.
5SGSMD8K3F40C2N
Same model may have multiple batches, images only for reference.

5SGSMD8K3F40C2N

Part No 5SGSMD8K3F40C2N
Manufacturer Intel
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 696 I/O 1517FBGA
Datasheet
5SGSMD8K3F40C2N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - FPGAs (Field Programmable Gate Array)
Mfr Intel
Series Stratix® V GS
Package Tray
Product Status Obsolete
Programmable Not Verified
Number of LABs/CLBs 262400
Number of Logic Elements/Cells 695000
Total RAM Bits 51200000
Number of I/O 696
Voltage - Supply 0.87V ~ 0.93V
Mounting Type Surface Mount
Temperature Range - Operating 0°C ~ 85°C (TJ)
Package / Case 1517-BBGA, FCBGA
Supplier Device Package 1517-FBGA (40x40)
Base Product Number 5SGSMD8
Standard Package 21 pcs
MSL Level 3 (168 Hours)
ECCN 3A001A2C
HTSUS 8542.39.0001
Win Source Part Number 856788-5SGSMD8K3F40C2N
Ultra Librarian 3D Model Ultra Librarian 5SGSMD8K3F40C2N CAD Model

Description

The 856788-5SGSMD8K3F40C2N is a high-performance FPGA from the Stratix V GS series supplied by Intel.

  • LABs/CLBs: 262400
  • Logic Elements/Cells: 695000
  • I/Os: 696
  • Voltage: 0.87V to 0.93V
  • Package: 1517-BBGA, FCBGA
  • Mounting Type: Surface Mountable
  • Status: Obsolete
  • MSL Level: 3
  • ECCN Code: 3A001A2C
  • HTSUS Code: 8542.39.0001
