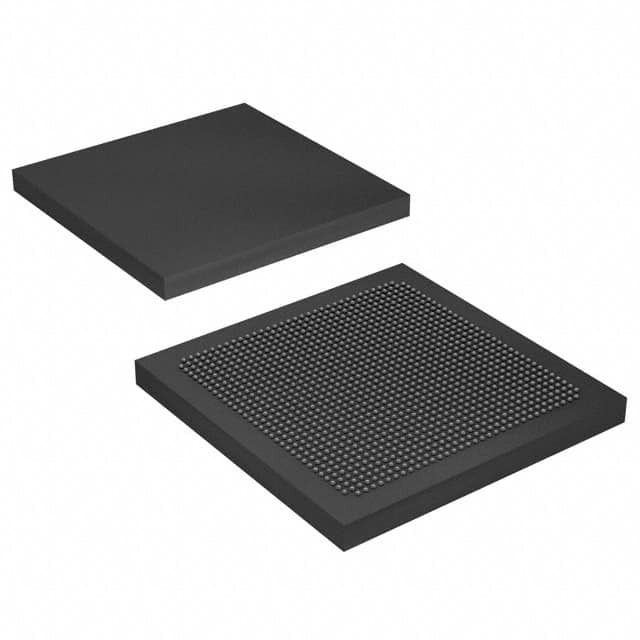

Same model may have multiple batches, images only for reference.
5SGXMA7H3F35I3N
Same model may have multiple batches, images only for reference.

5SGXMA7H3F35I3N

Part No 5SGXMA7H3F35I3N
Manufacturer Intel
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 552 I/O 1152FBGA
Datasheet
5SGXMA7H3F35I3N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - FPGAs (Field Programmable Gate Array)
Mfr Intel
Series Stratix® V GX
Package Tray
Product Status Obsolete
Programmable Not Verified
Number of LABs/CLBs 234720
Number of Logic Elements/Cells 622000
Total RAM Bits 51200000
Number of I/O 552
Voltage - Supply 0.82V ~ 0.88V
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 100°C (TJ)
Package / Case 1152-BBGA, FCBGA
Supplier Device Package 1152-FBGA (35x35)
Base Product Number 5SGXMA7
Standard Package 24 pcs
MSL Level 3 (168 Hours)
ECCN 3A001A2C
HTSUS 8542.39.0001
Win Source Part Number 856794-5SGXMA7H3F35I3N
Ultra Librarian 3D Model Ultra Librarian 5SGXMA7H3F35I3N CAD Model

Description

The 856794-5SGXMA7H3F35I3N is an integrated circuit (IC) from the Stratix V GX series manufactured by Intel.

  • Package: Tray
  • Standard Package Quantity: 24 pieces
  • I/Os: 552
  • LABs/CLBs: 234,720
  • Logic elements/cells: 622,000
  • RAM bits: 51,200,000
  • Voltage Supply: 0.82V to 0.88V
  • Package Type: 1152-BBGA, FCBGA
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C to 100°C
