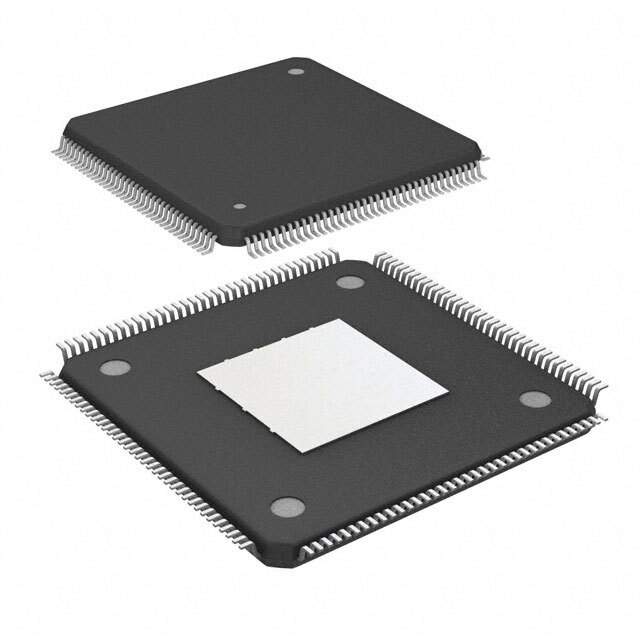

Products specifications

Category Integrated Circuits (ICs)>Embedded>FPGAs (Field Programmable Gate Array)
Manufacturer Intel
Packaging Tray
Number of LABs/CLBs 645
Number of Logic Elements/Cells 10320
Total RAM Bits 423936
Number of I/O 94
Voltage - Supply 1.15V ~ 1.25V
Mounting Surface Mount
Temperature Range - Operating 0°C ~ 85°C (TJ)
Case / Package 144-LQFP Exposed Pad
Supplier Device Package 144-EQFP (20x20)
Base Product Number EP3C10
RoHS Status RoHS non-compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991D
HTSUS 8542.39.0001
Other Part Number 973090,544-2424,EP3C10E144C7-ND,-544-2424
Standard Package 60
Win Source Part Number 1323171-EP3C10E144C7
Ultra Librarian 3D Model Ultra Librarian EP3C10E144C7 CAD Model

Description

The EP3C10E144C7 is an FPGA (Field-Programmable Gate Array) from the Cyclone III family by Intel (Altera). These FPGAs are designed for low-cost, low-power applications, offering a balance of performance and efficiency. The 'EP3C10' indicates a device with approximately 10,000 logic elements, 'E' suggests an enhanced feature set and '144' indicates a 144-pin package. The 'C7' denotes the temperature grade and speed grade.

Applications

  • Motor control systems
  • Image processing
  • Embedded vision systems
  • Industrial automation
  • Test and measurement equipment

Features

  • 10,320 logic elements (LEs)
  • 144-pin EQFP package
  • 414,720 total RAM bits
  • 26 embedded multipliers
  • Four PLLs (Phase-Locked Loops) for clock management
  • Multiple general-purpose I/Os (GPIOs)

Benefits

  • Low power consumption: Ideal for battery-powered or energy-sensitive applications.
  • Cost-effective: Provides a good balance of features and price for mid-range applications.
  • Flexibility: Programmable logic allows for customization and adaptation to different requirements.
  • Fast prototyping: Enables rapid development and testing of custom hardware designs.
  • High performance: Provides sufficient processing power for a wide range of applications.

Additional Details

The EP3C10E144C7 FPGA operates on a 1.2V core voltage, which contributes to its low power consumption. The 144-pin EQFP package offers a relatively small footprint, making it suitable for space-constrained applications. The on-chip RAM can be used for data storage, buffering, and processing. The embedded multipliers accelerate signal processing tasks. The PLLs provide flexible clock generation and management, allowing the device to operate at various frequencies. The GPIOs can be configured as inputs, outputs, or bidirectional pins, providing interfaces to external devices and systems. Development for the EP3C10E144C7 is typically done using Intel's Quartus Prime software. This software provides a comprehensive set of tools for design entry, synthesis, place and route, and simulation. The software also includes a library of pre-built IP cores that can be used to accelerate development and reduce design time.
